Work portfolio

Real projects.
Visible stages.

Explore underground drainage, entrance drain restoration, sump pump installation and plumbing rough-in through photographs from the job.

First visit · underground drainage

Underground piping & surface restoration.

From opening the work area to reinstating paving and the deck, follow the first visit on this drainage project.

  1. Open the work area and excavate the pipe route.
  2. Install underground drain piping, including the section beneath the deck.
  3. Backfill the excavated area with gravel.
  4. Reinstate paving and the deck surface.

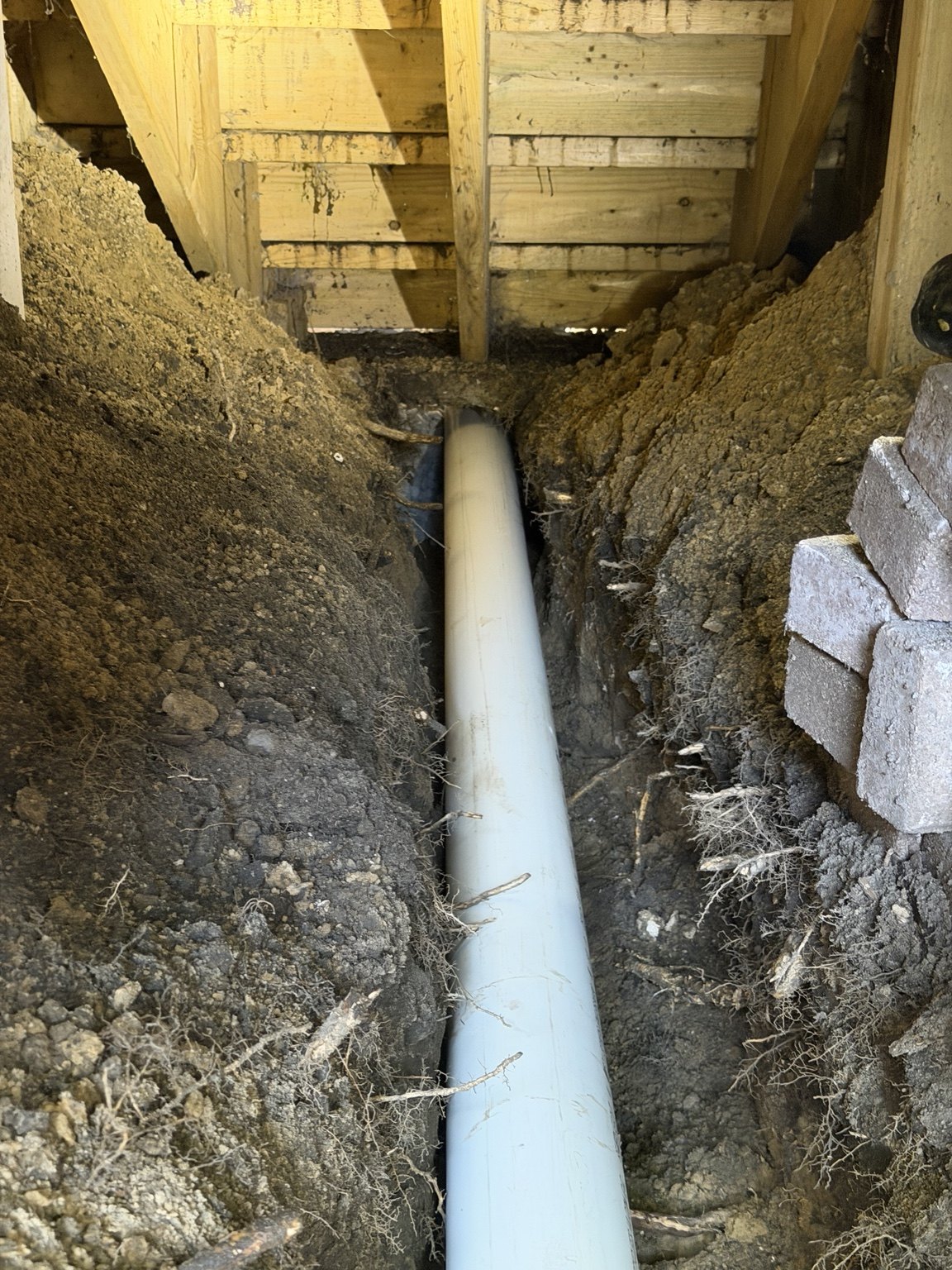

New drain piping beneath the deck

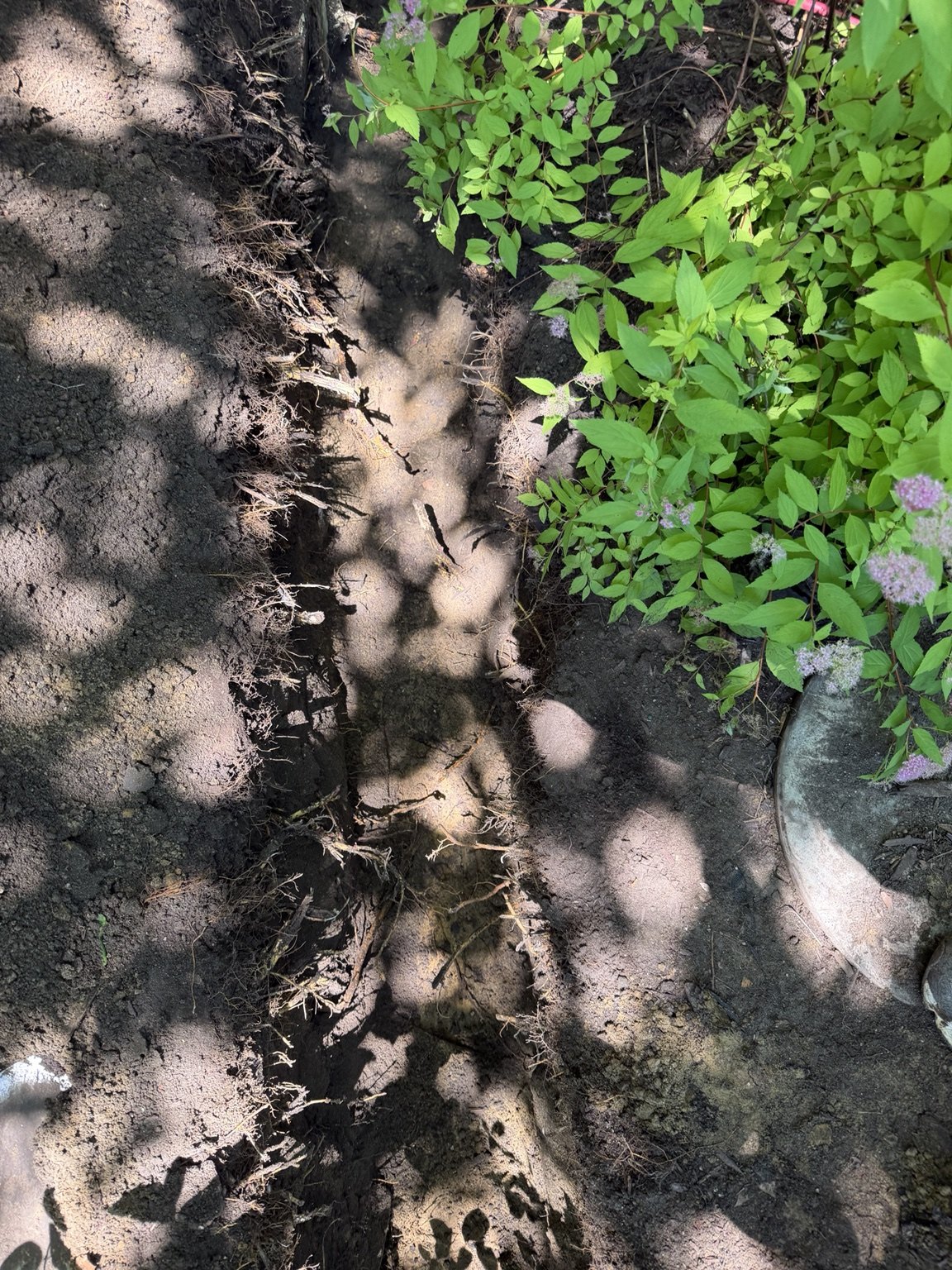

Excavated pipe route beside the landscaping

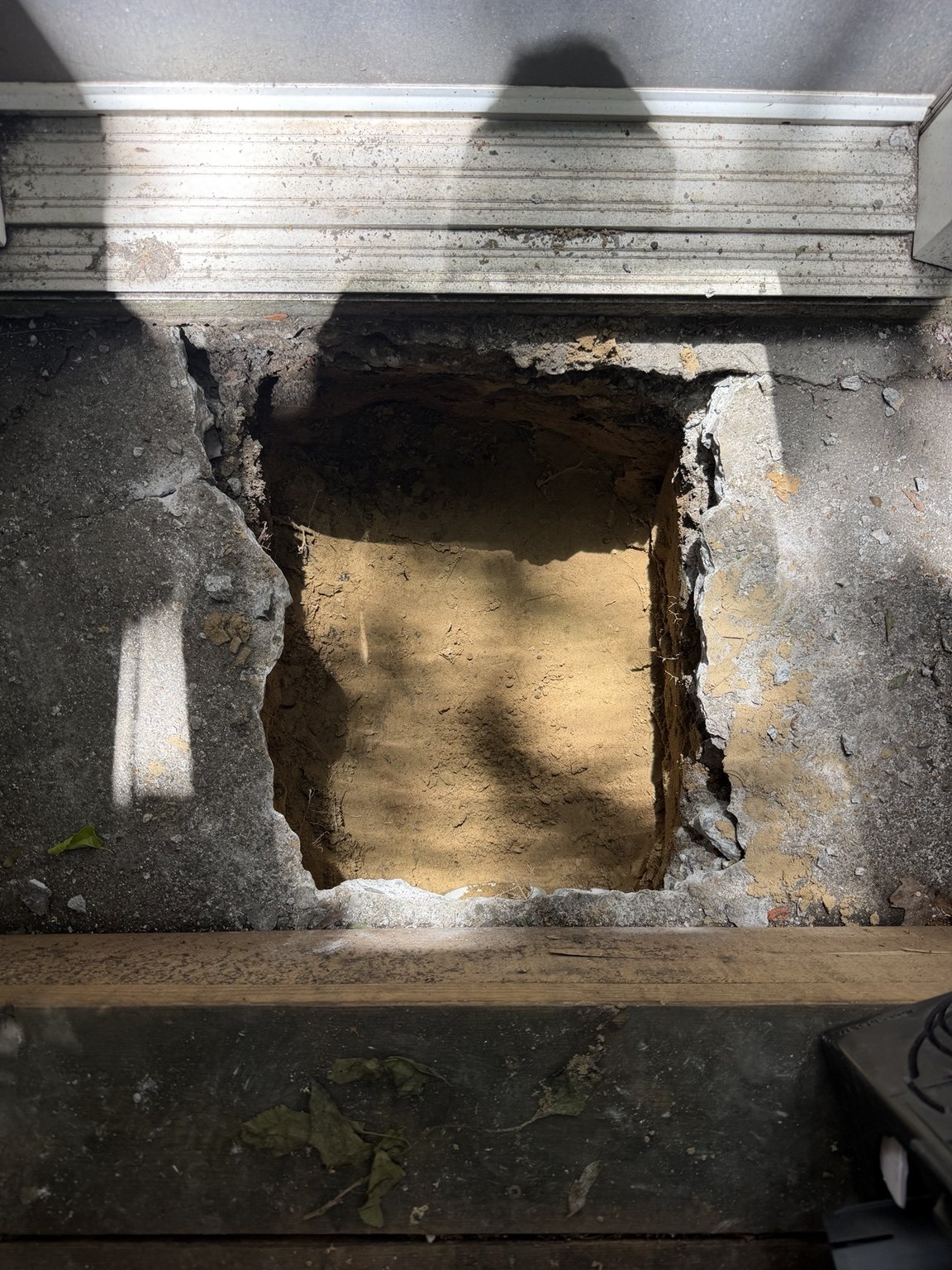

Work area opened at the deck

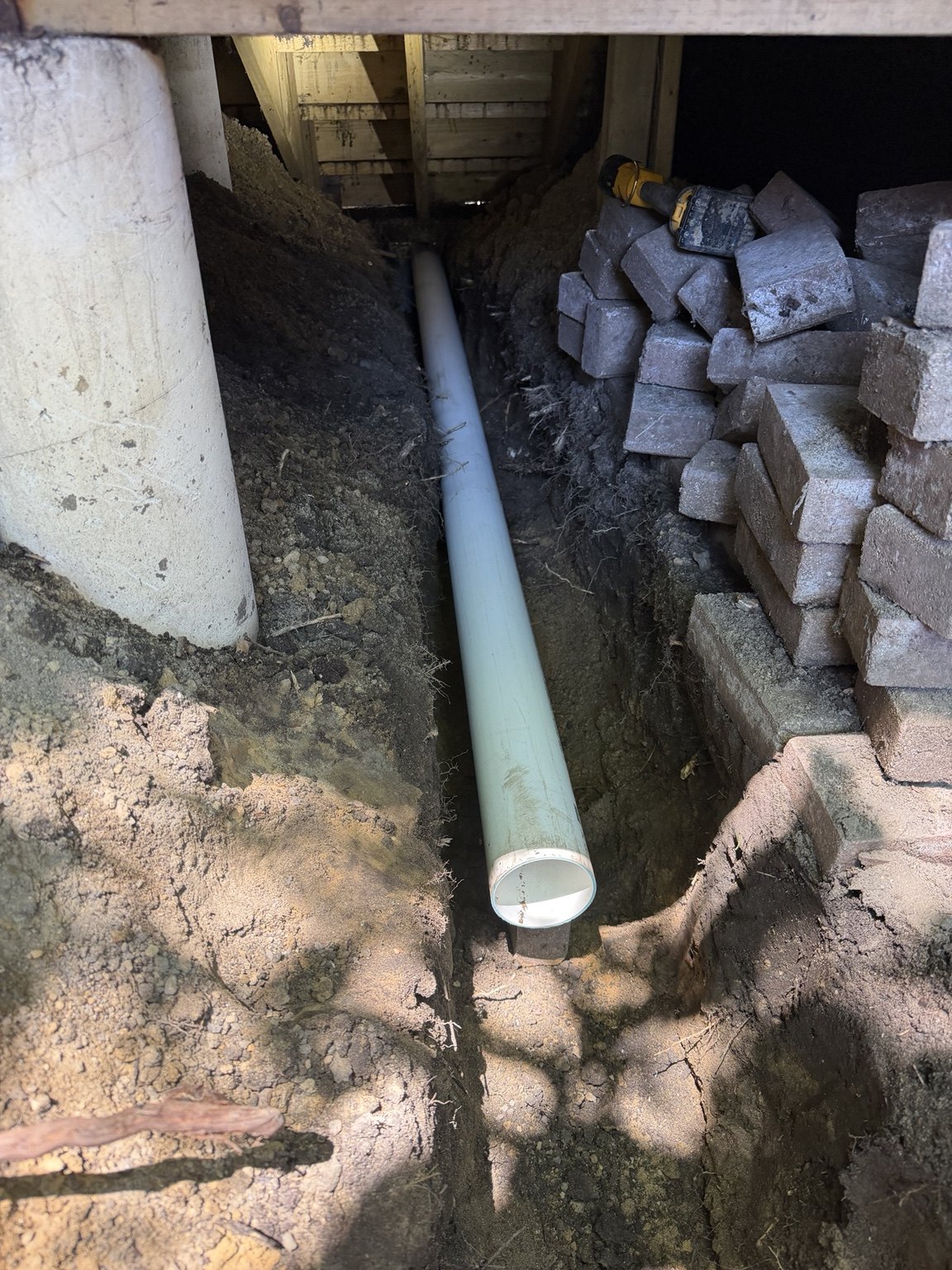

Pipe installation beneath the deck

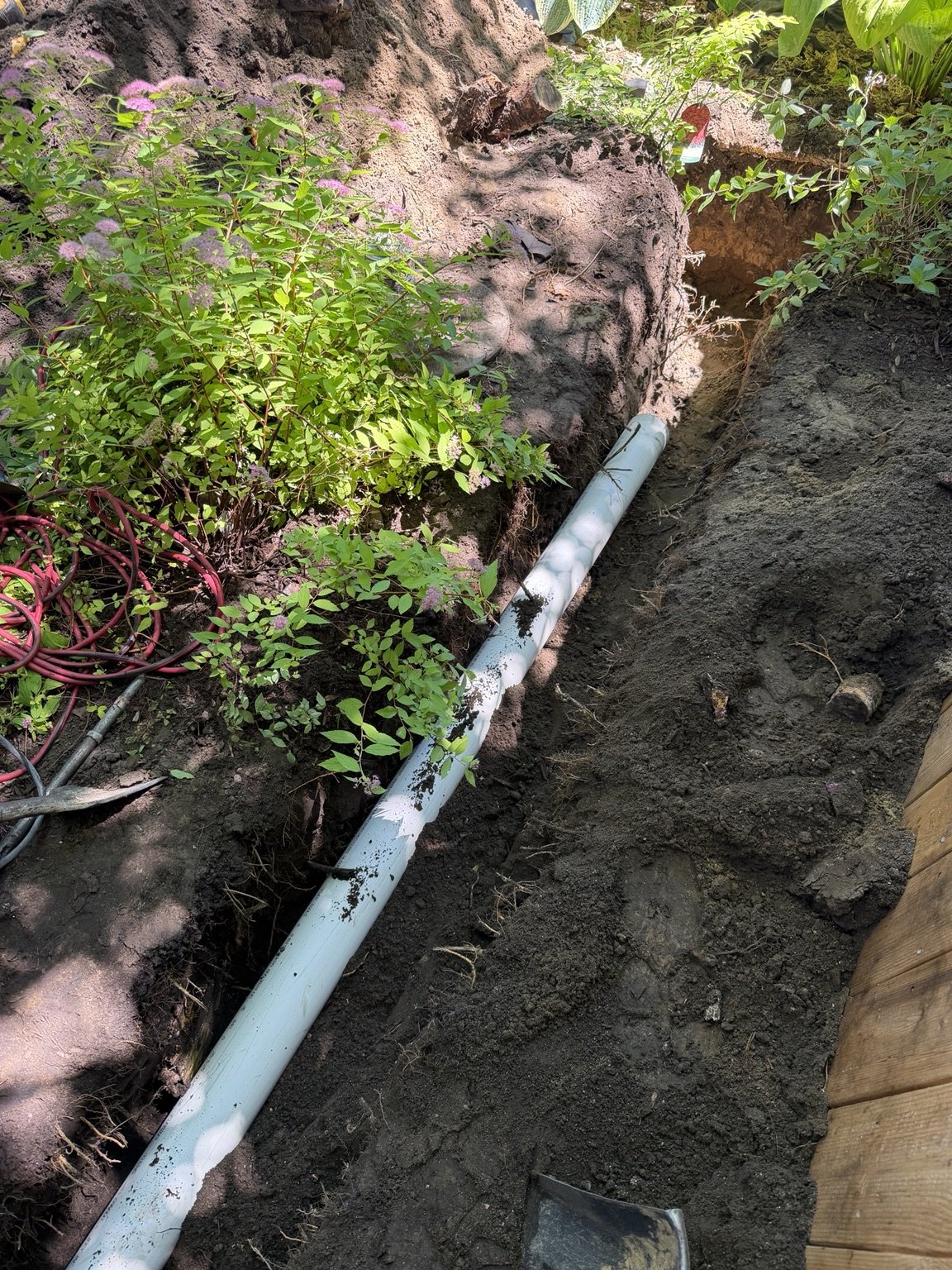

Underground pipe route beside the house

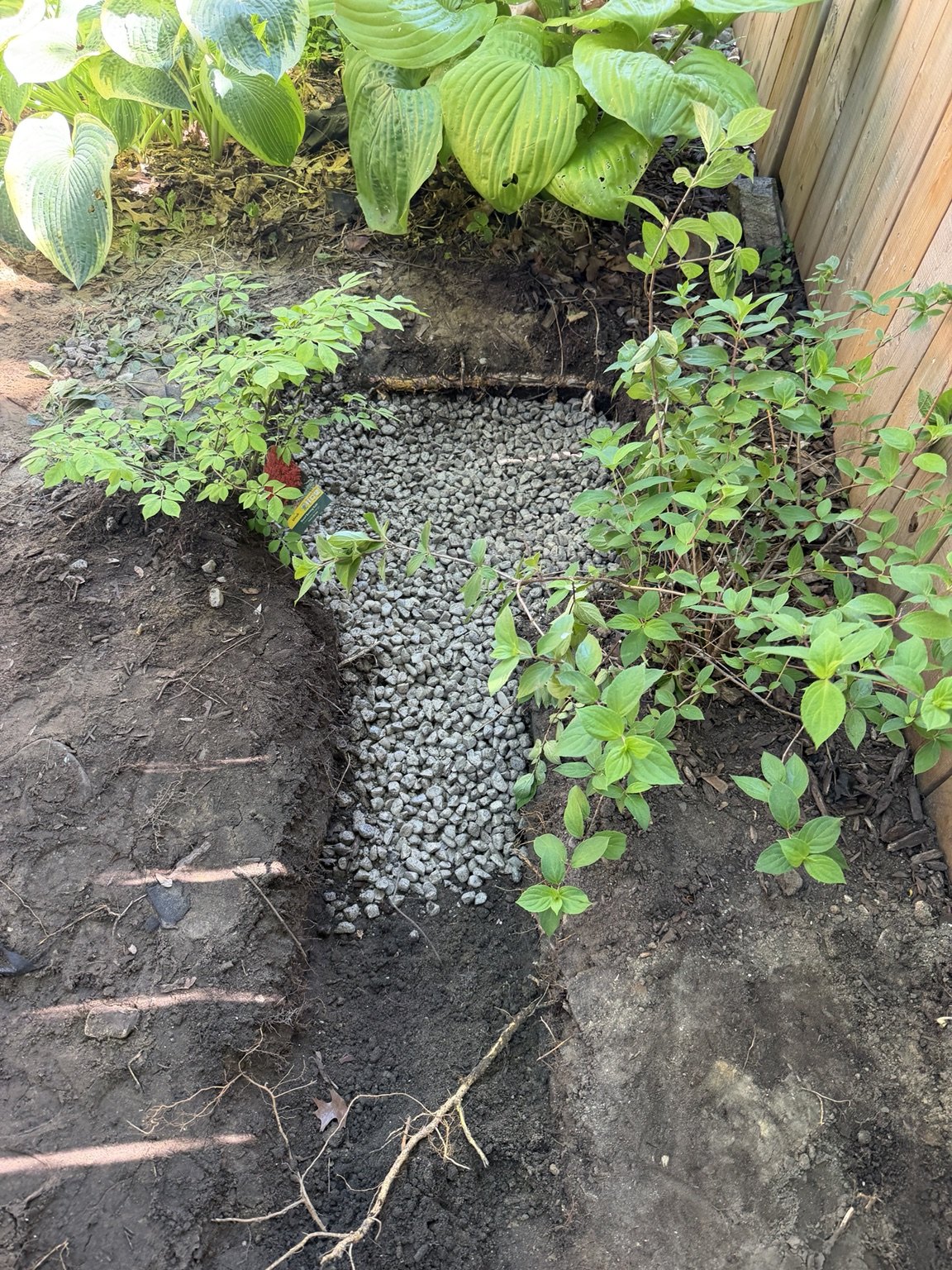

Gravel backfill along the excavated route

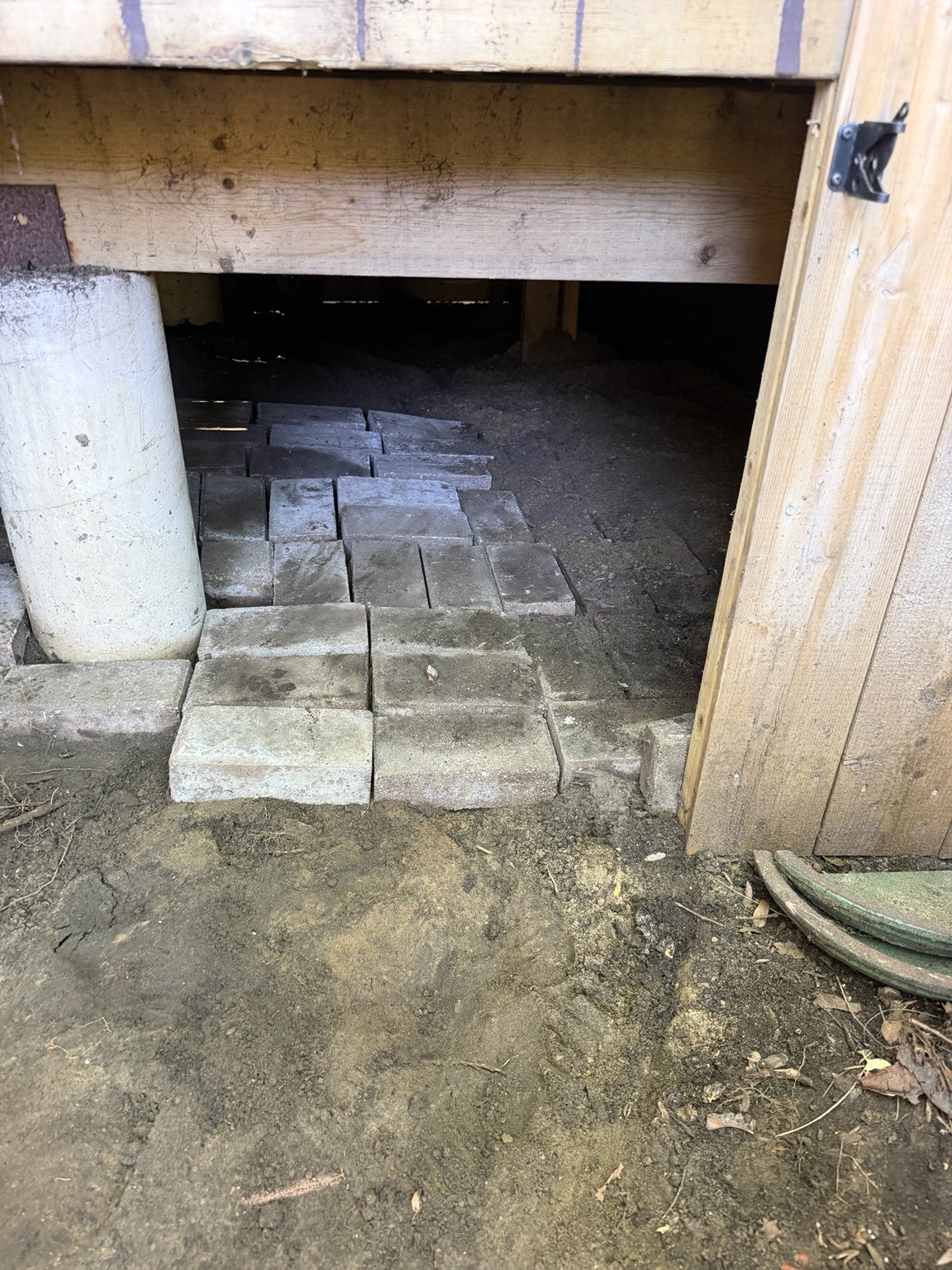

Paving reinstated beneath the deck

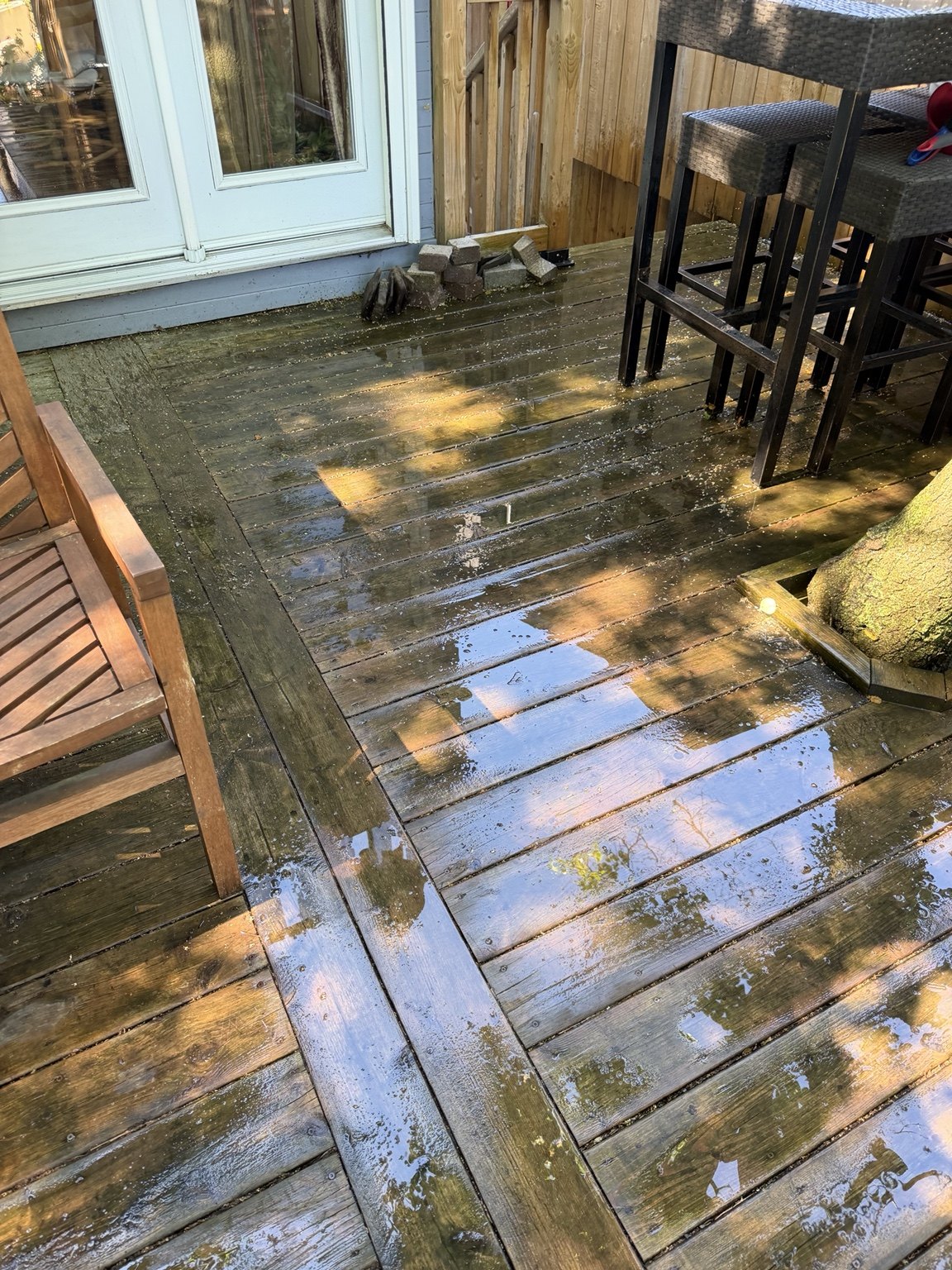

Deck surface restored

Return visit · entrance drain

Entrance drain & concrete landing.

The return visit focused on the drain at the exterior entrance and the concrete around it.

  1. Remove the existing concrete around the drain.
  2. Clear the area and prepare the gravel base.
  3. Position the grate and check its level.
  4. Fit the dimpled membrane around the prepared area.
  5. Place and finish new concrete around the drain.
  6. Temporarily cover the freshly concreted area with boards.

New concrete finished around the entrance drain

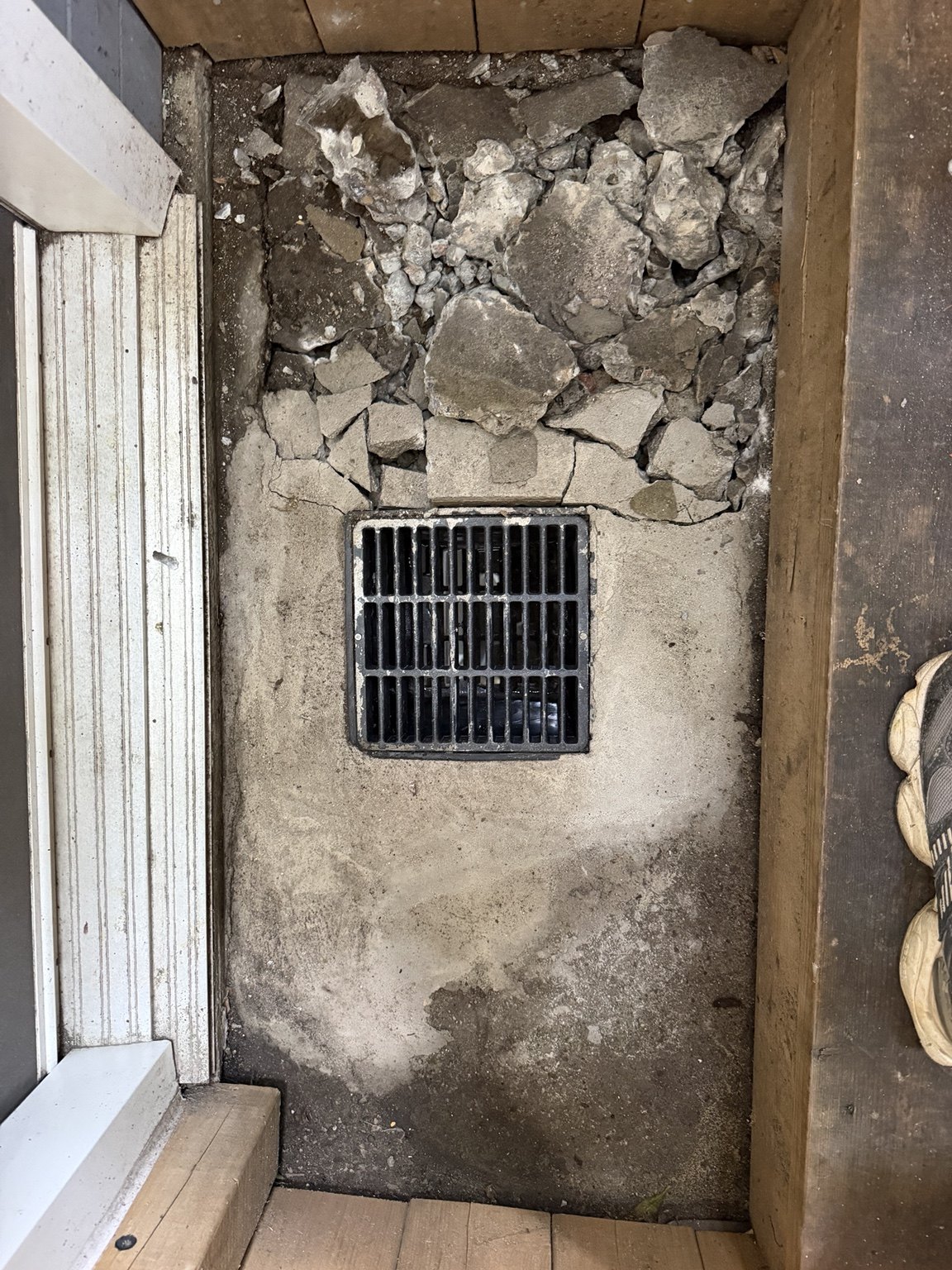

Existing concrete broken out around the drain

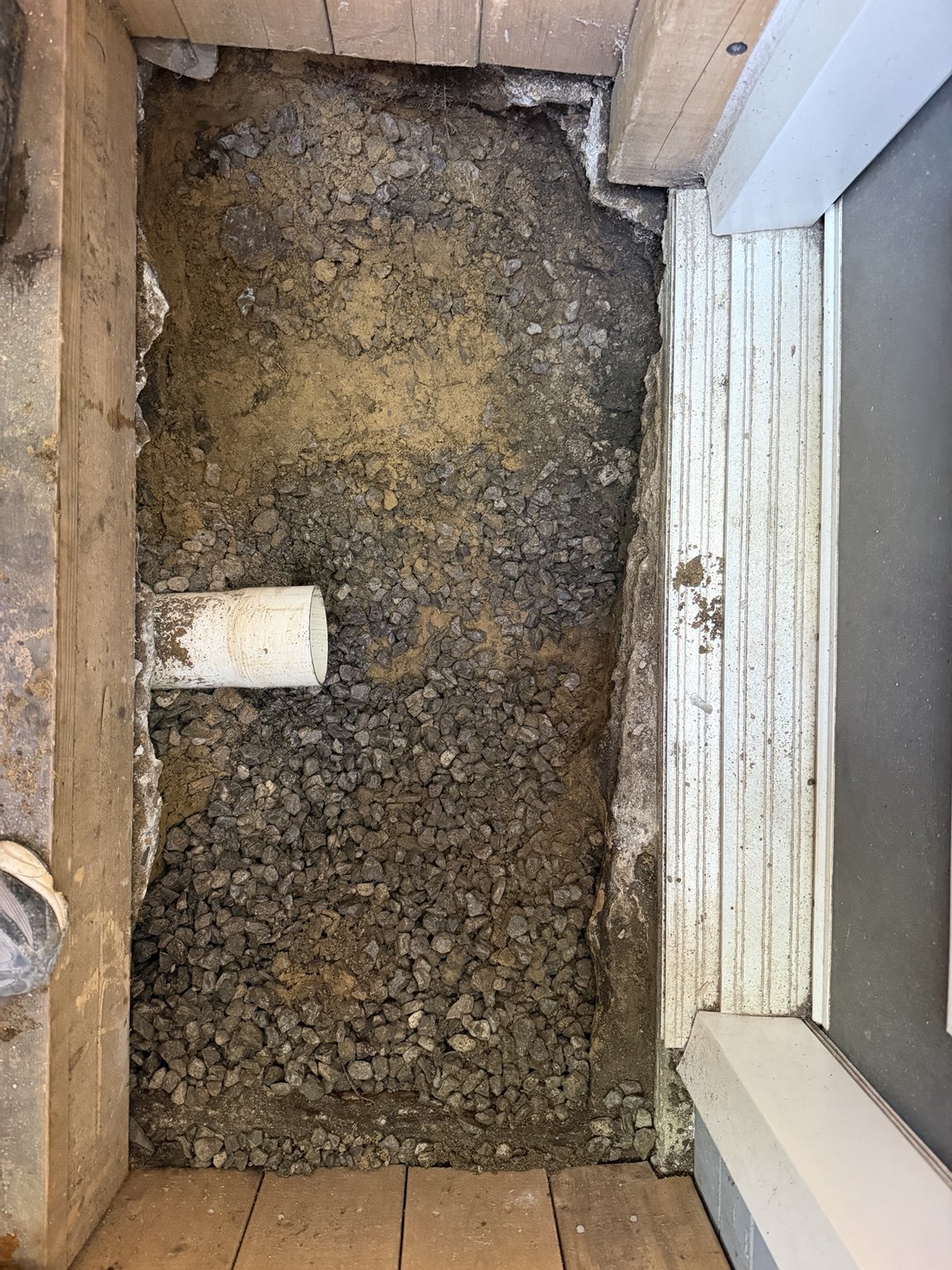

Work area cleared and gravel base prepared

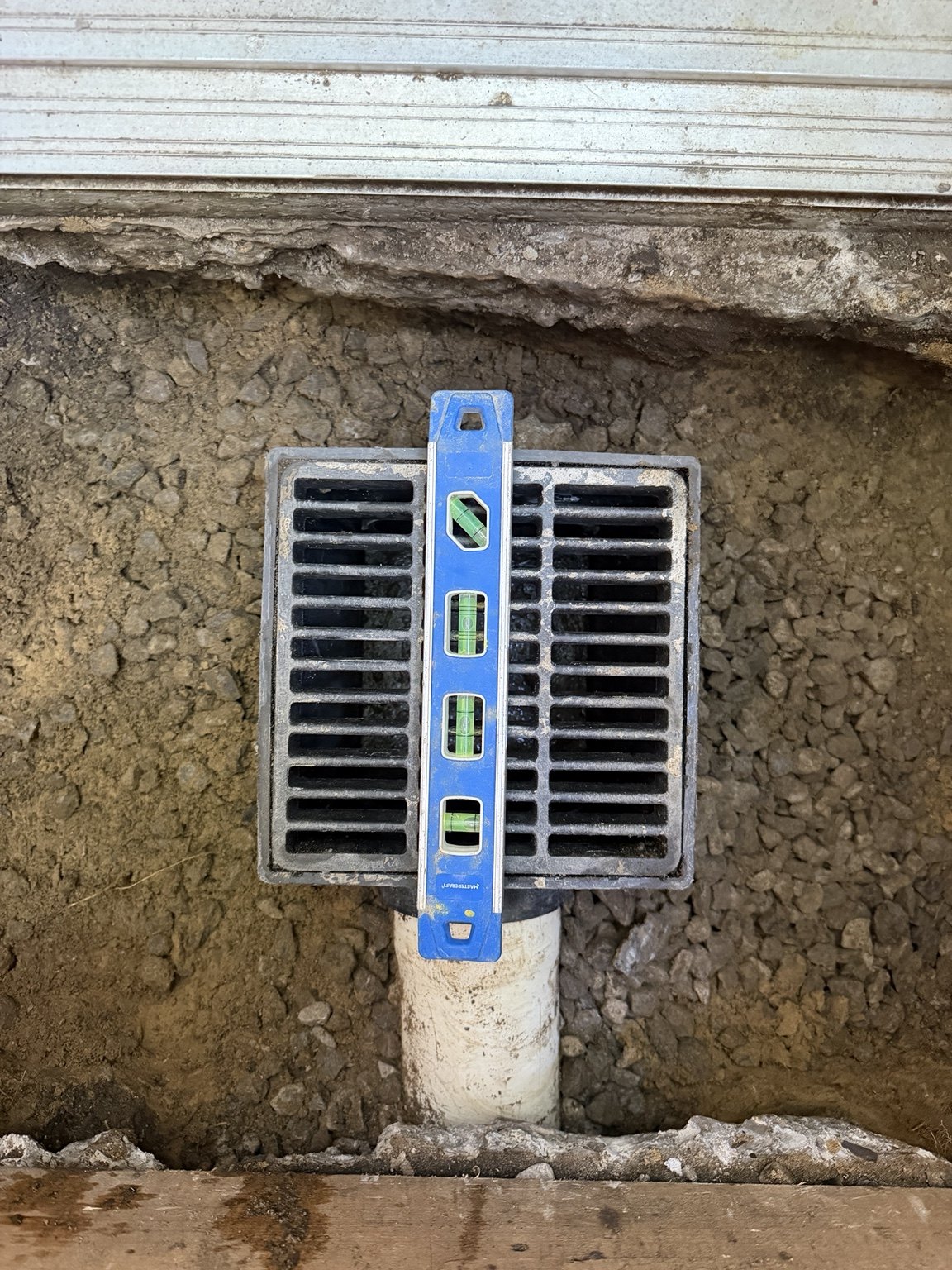

Drain grate level checked

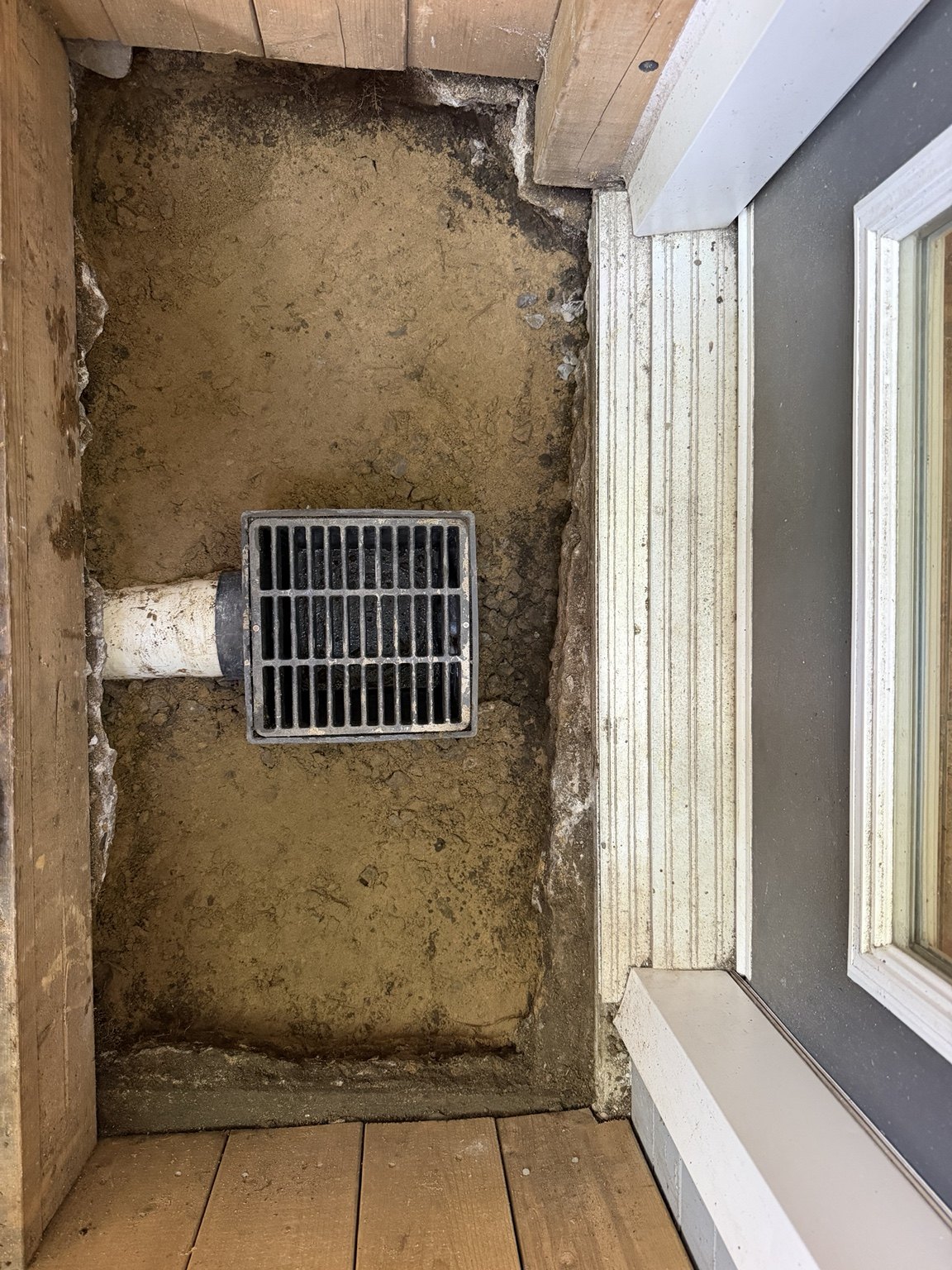

Drain positioned in the prepared entrance landing

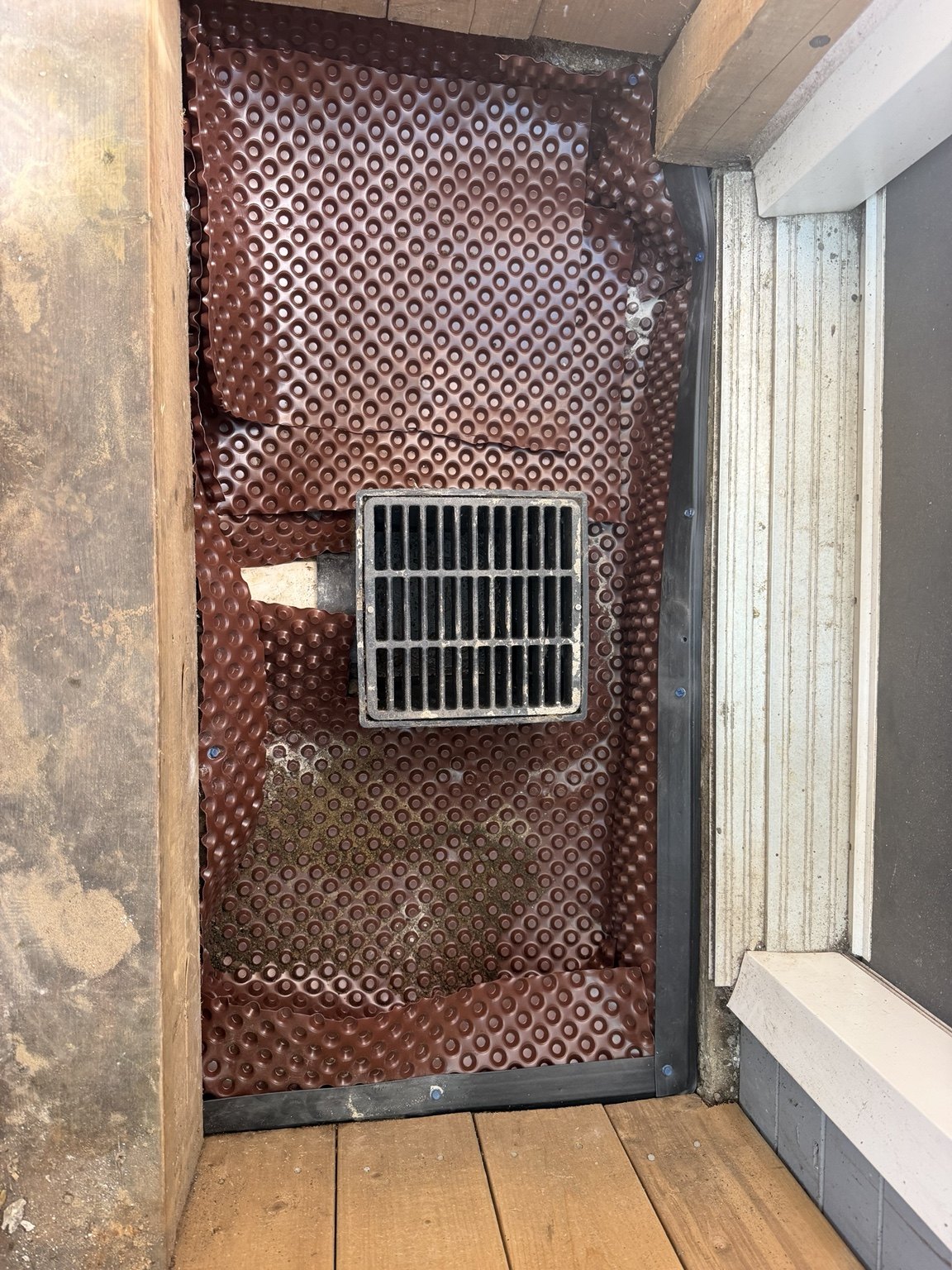

Dimpled membrane fitted before concrete placement

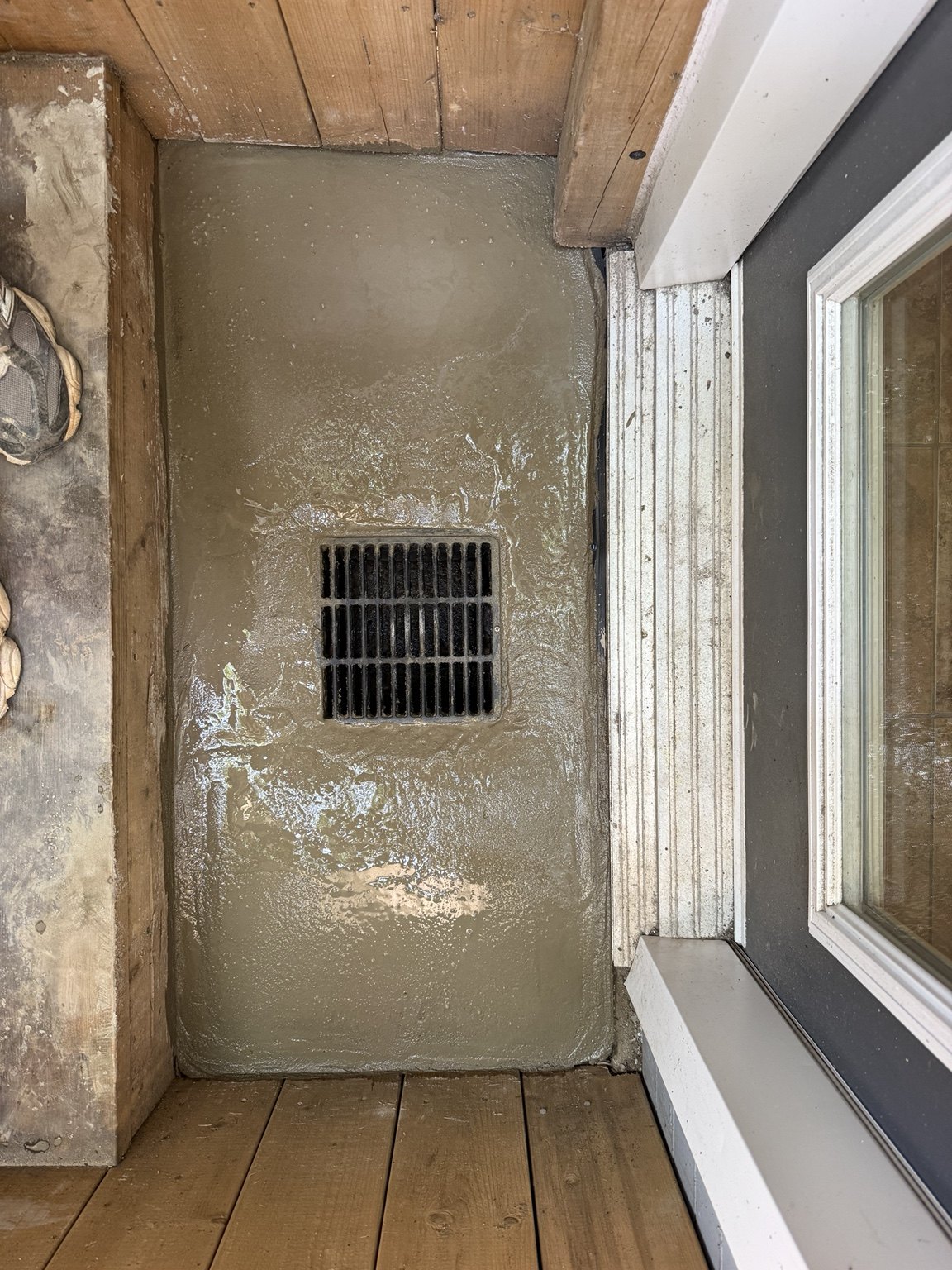

Freshly placed concrete around the drain

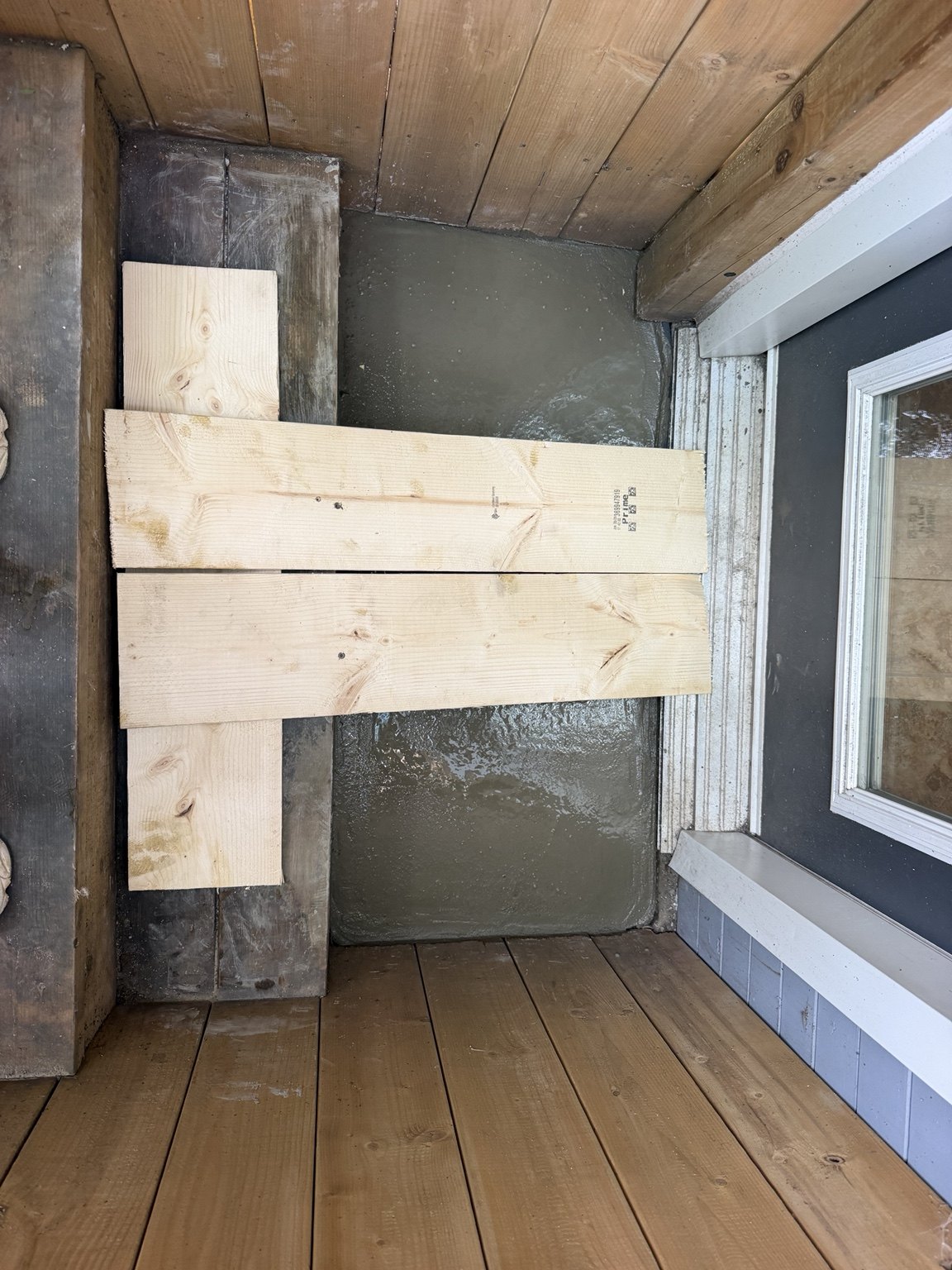

Temporary boards covering the freshly concreted area

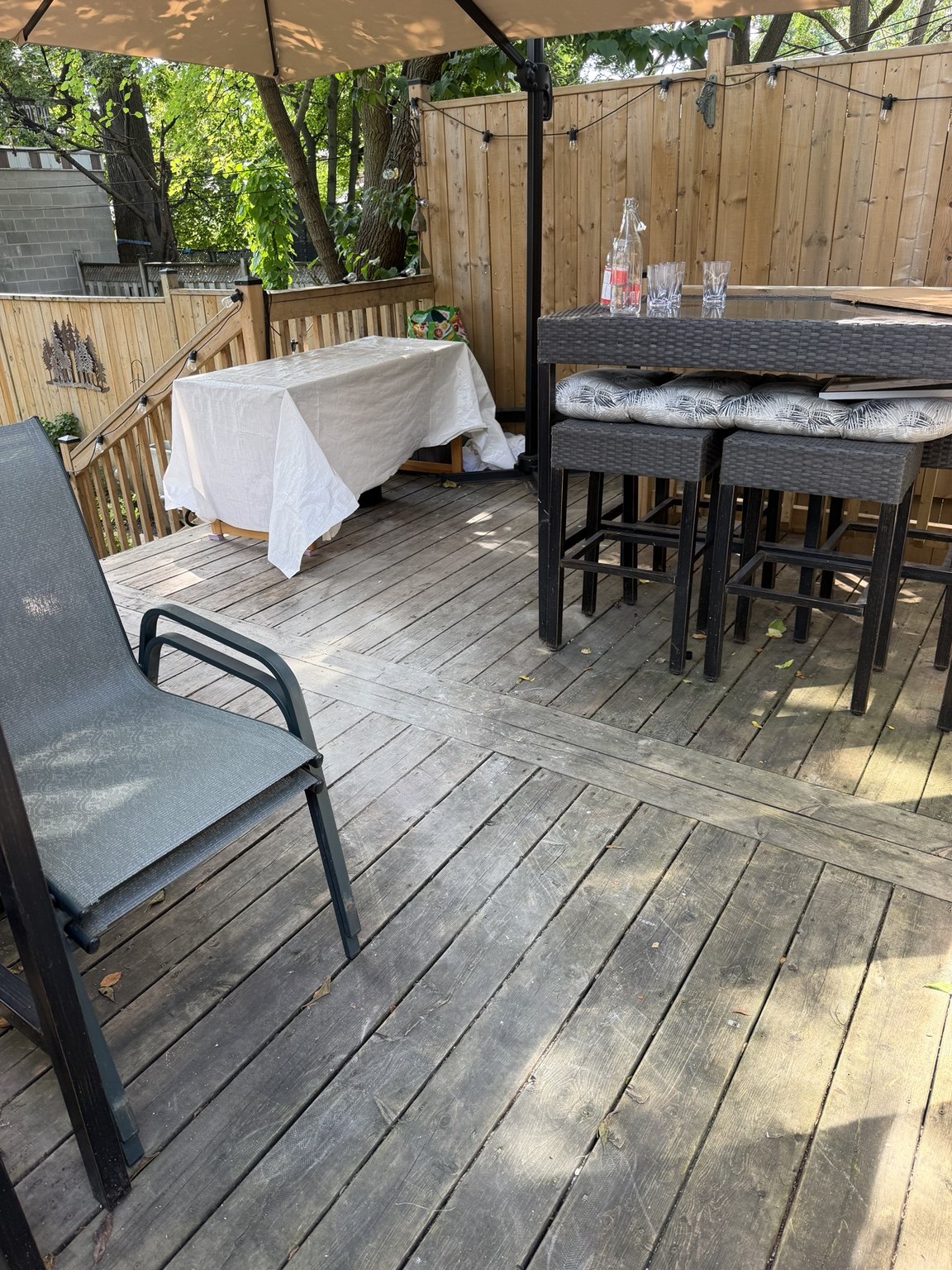

Surrounding deck after the return visit

Basement · sump pump installation

Sump pump installation.

A complete photo sequence of the sump basin, pump and discharge piping installation, through to concrete restoration.

  1. Open the tile and concrete floor.
  2. Excavate the pit for the sump basin.
  3. Position the basin and connect the incoming drain pipe.
  4. Check the basin level and backfill around it with gravel.
  5. Install the pump and route the discharge piping up the wall.
  6. Fit the lid and restore the concrete around the basin.

Sump basin with the surrounding concrete restored

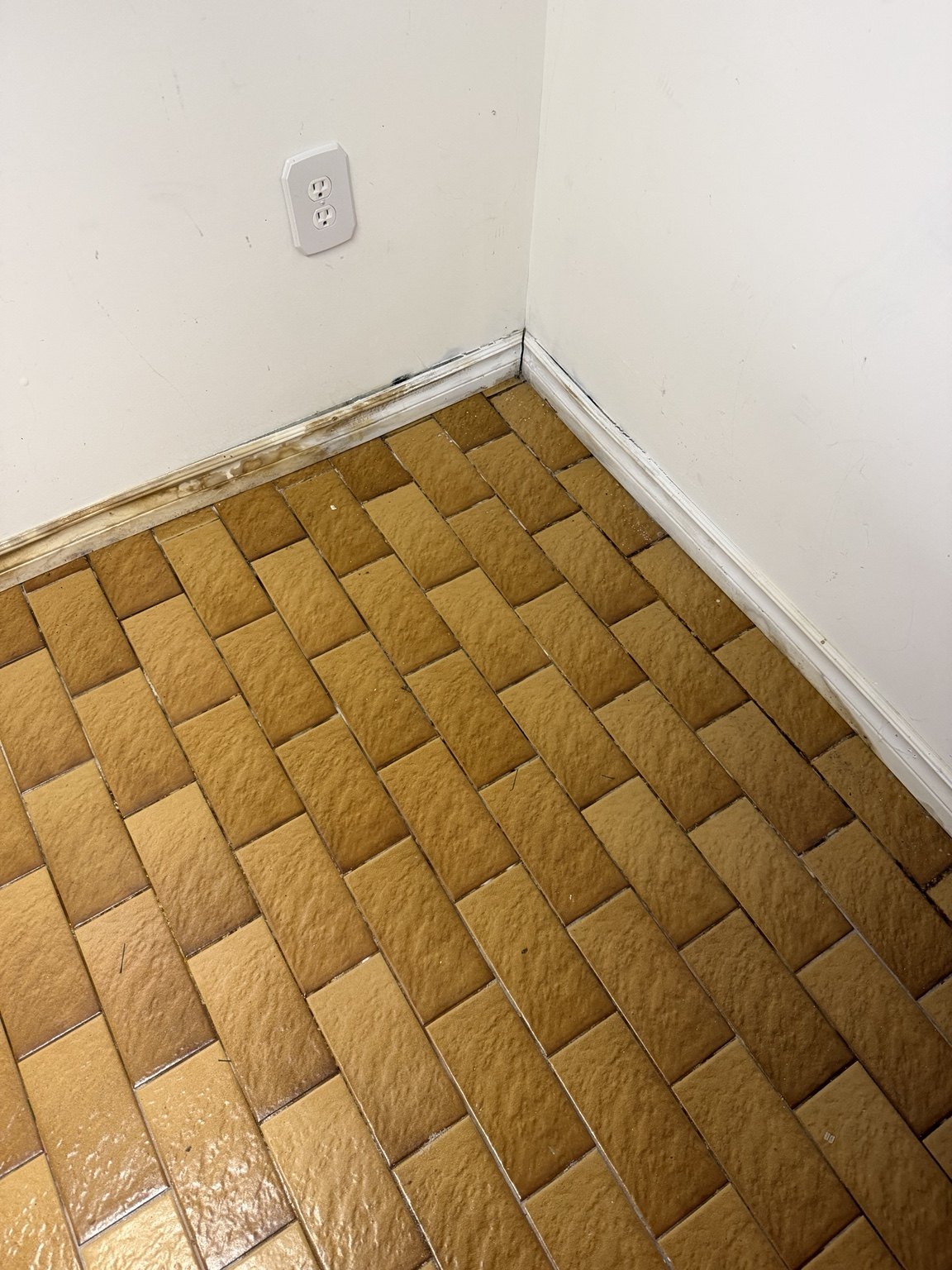

Existing floor before the sump installation

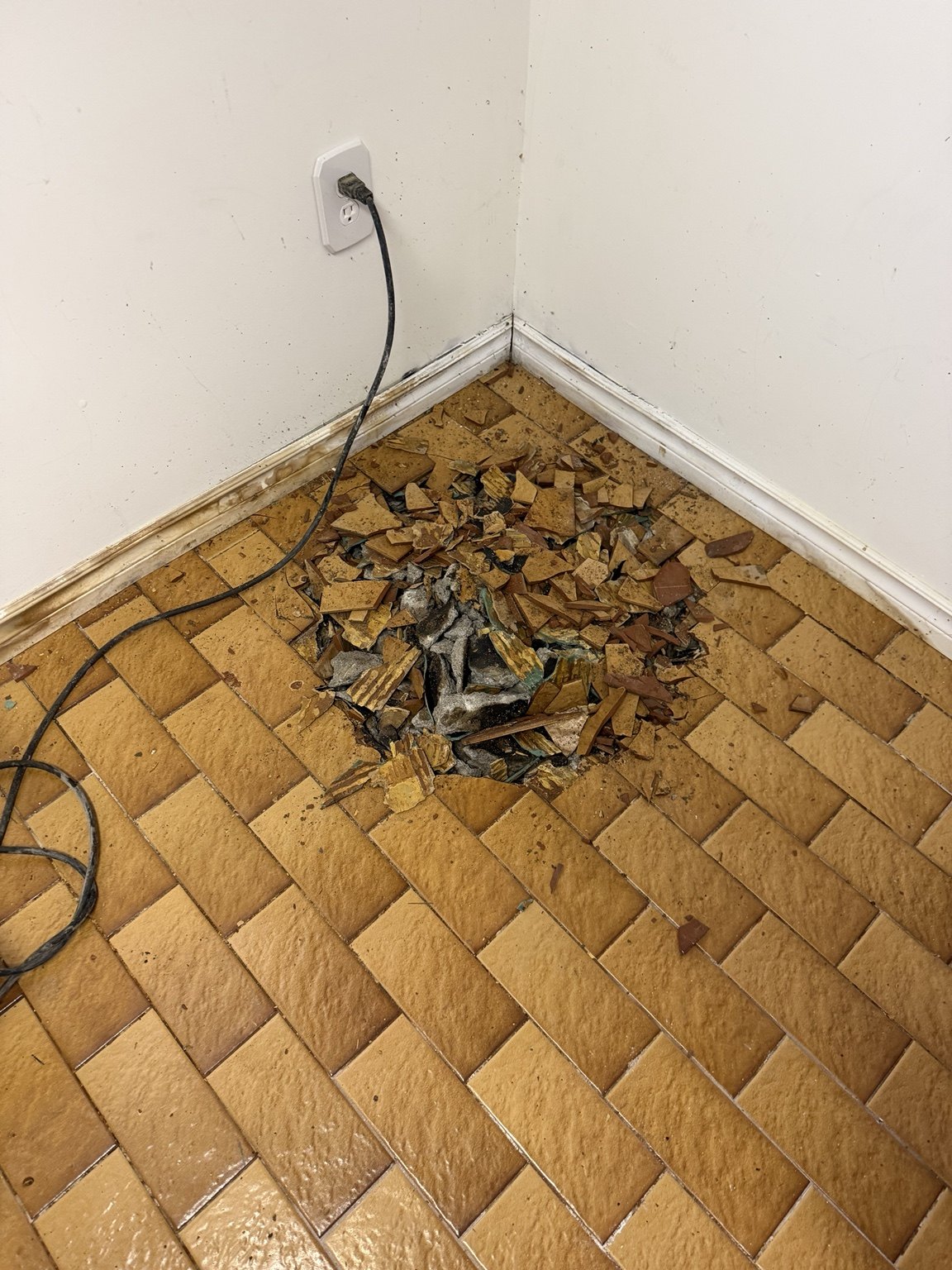

Tile and concrete floor opened

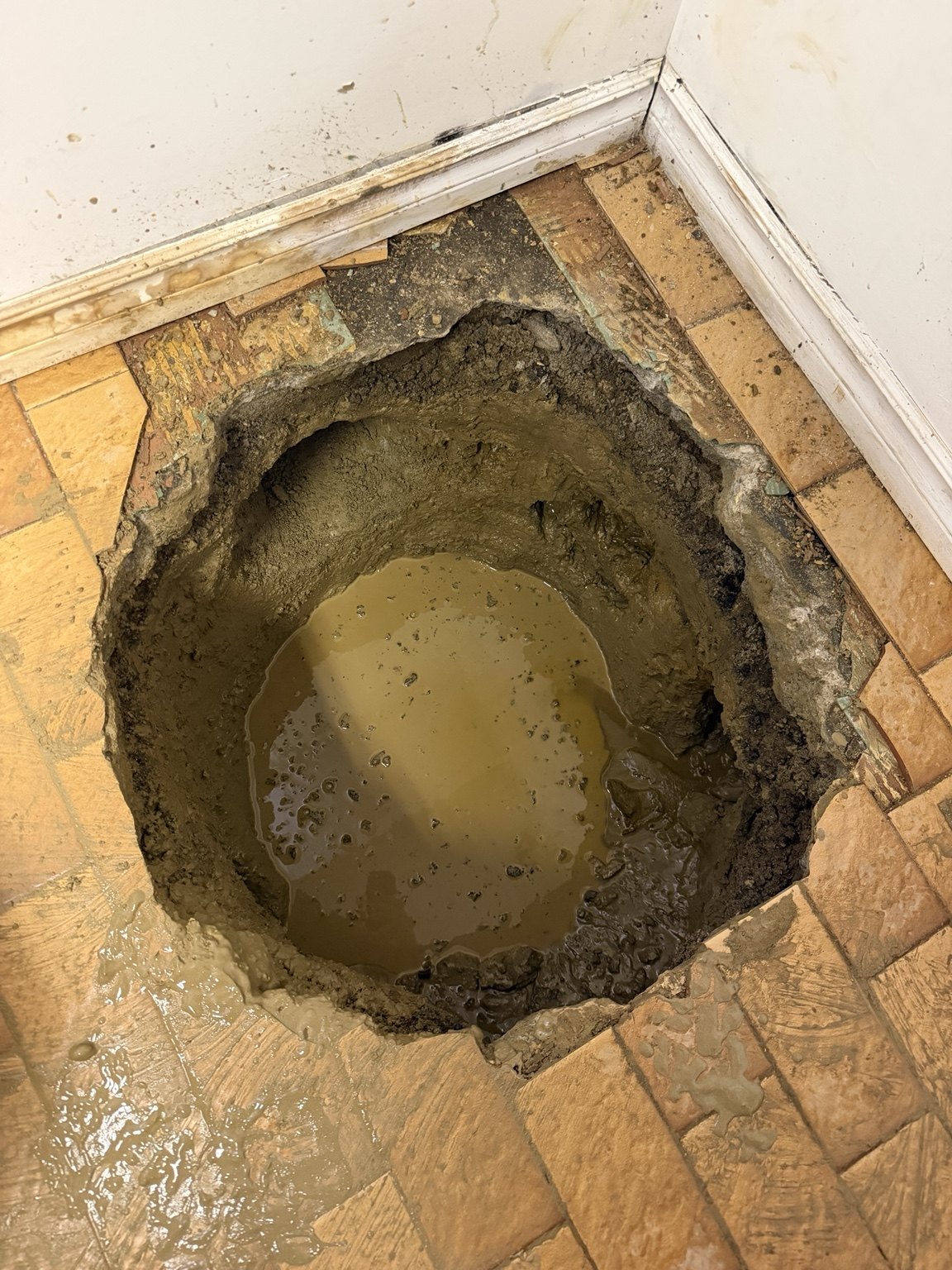

Sump pit excavated

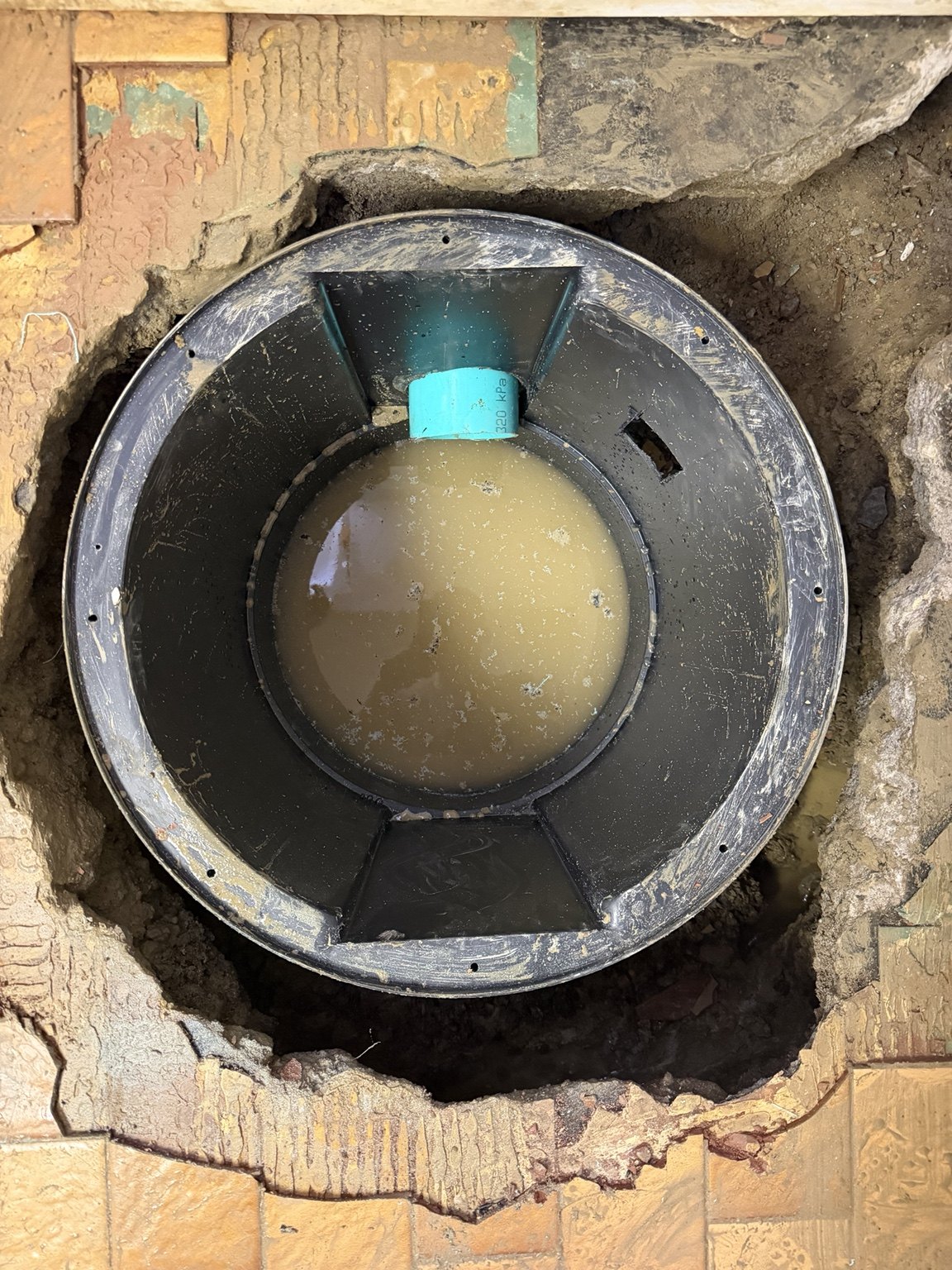

Basin positioned with the incoming drain pipe connected

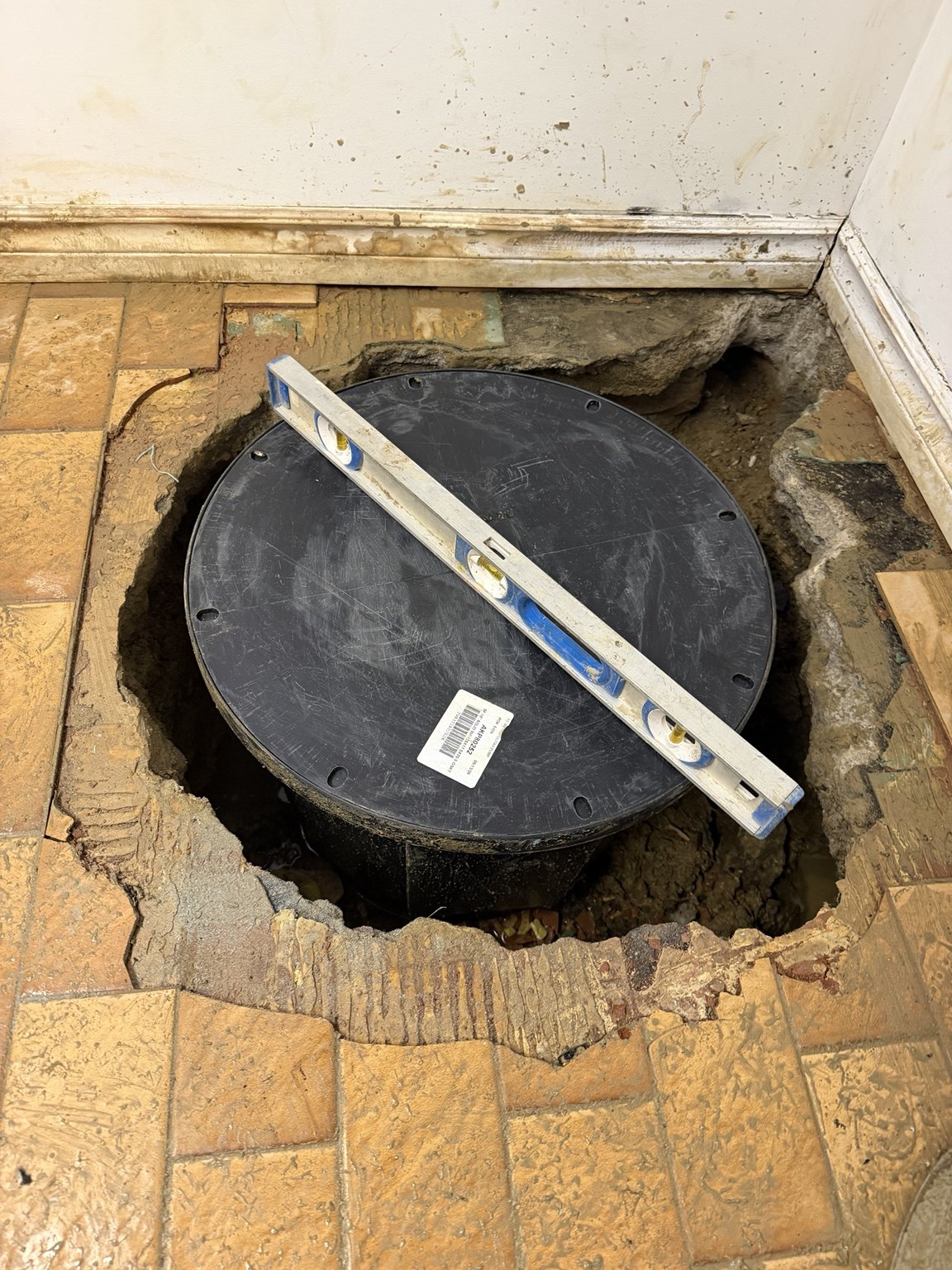

Basin level checked

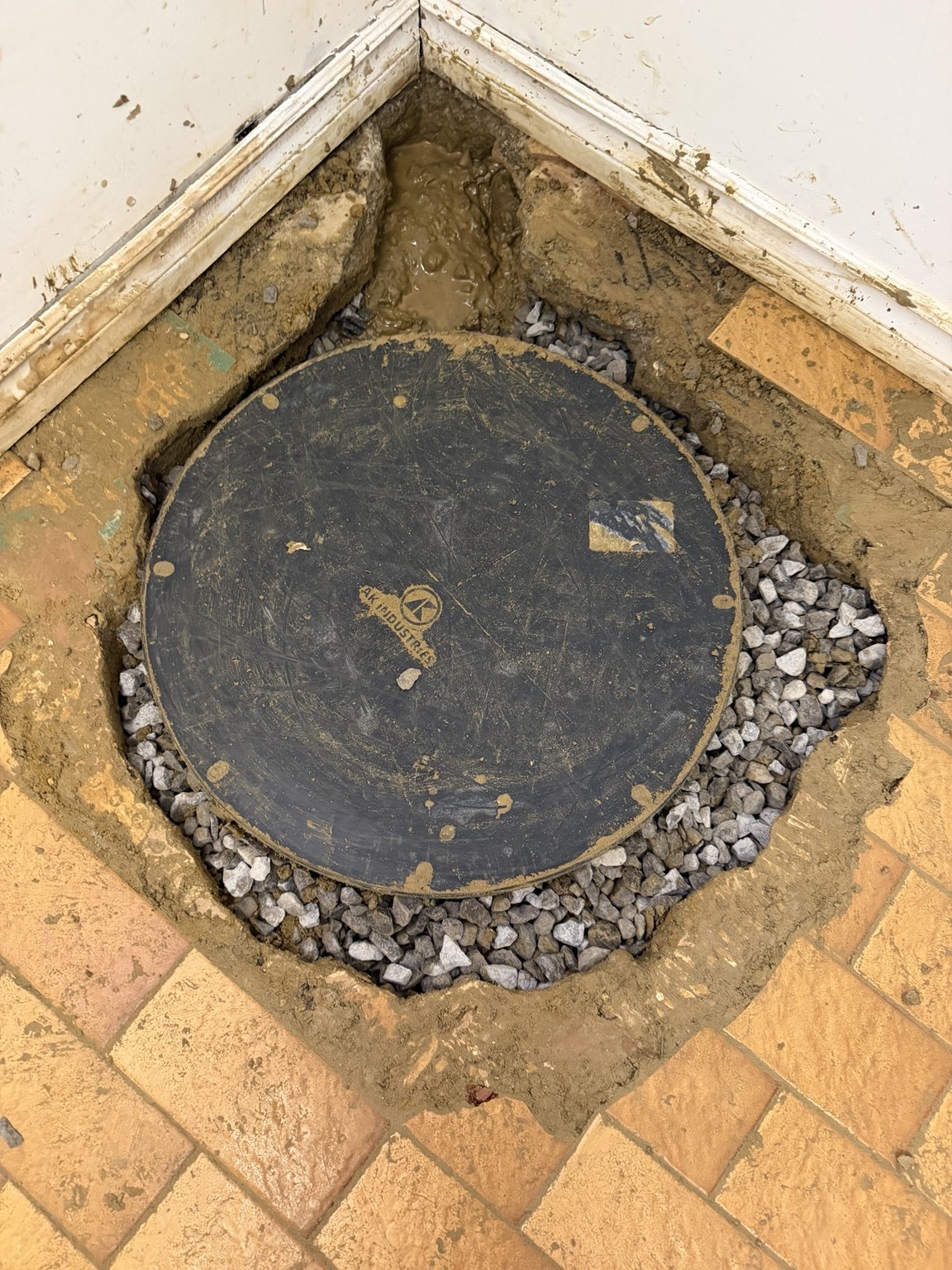

Gravel backfill around the basin

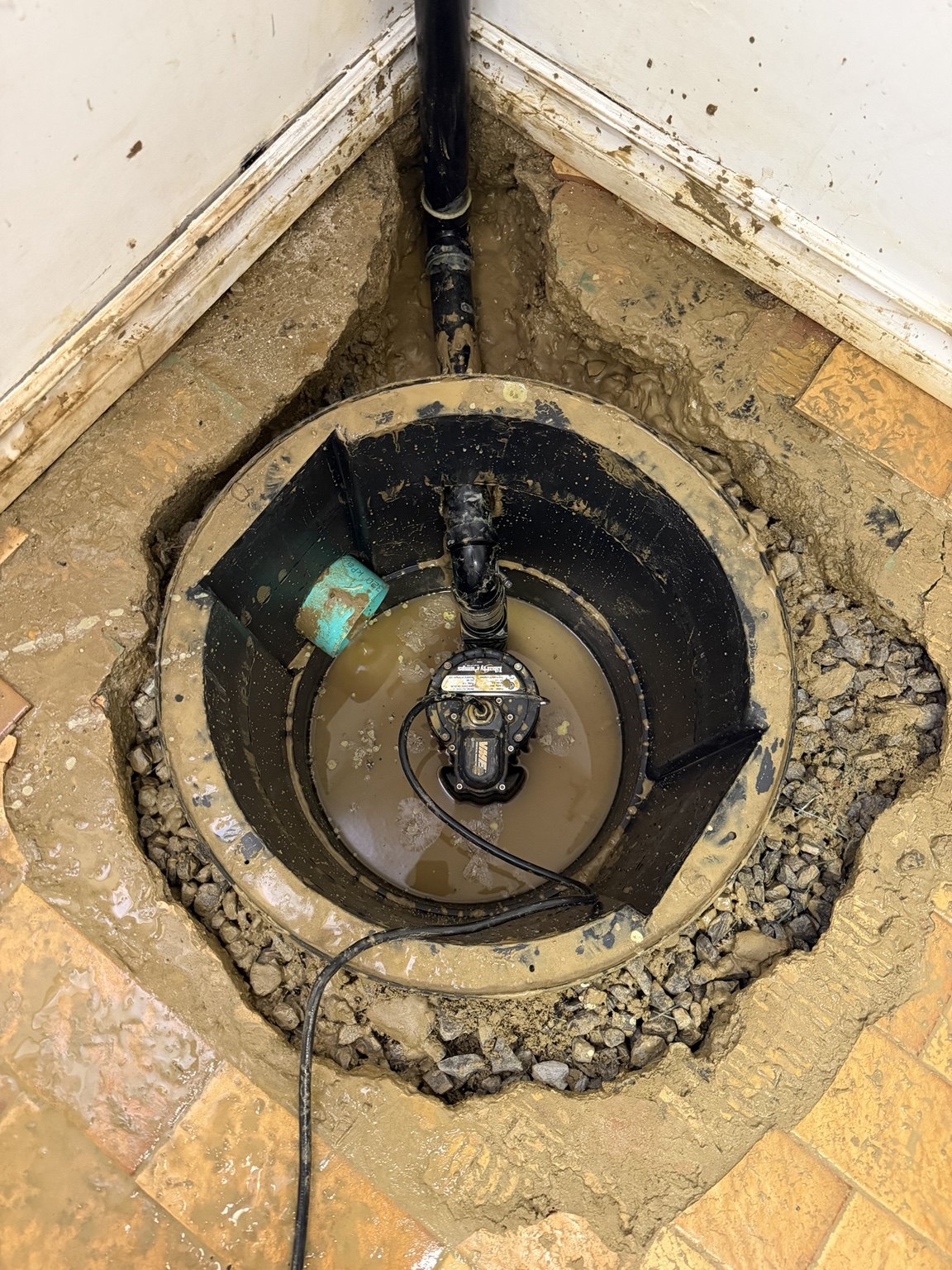

Pump installed inside the basin

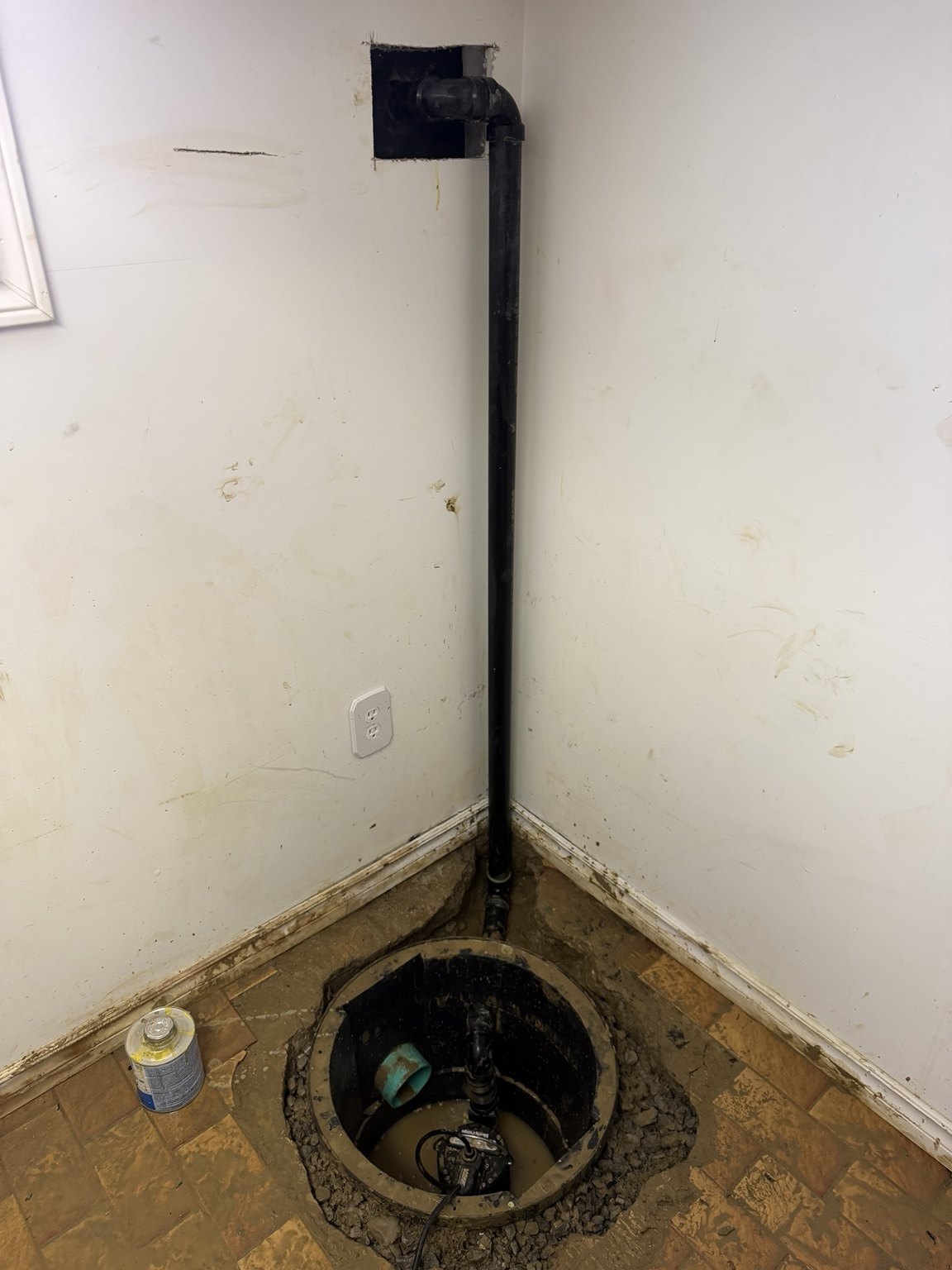

Discharge piping routed up the wall

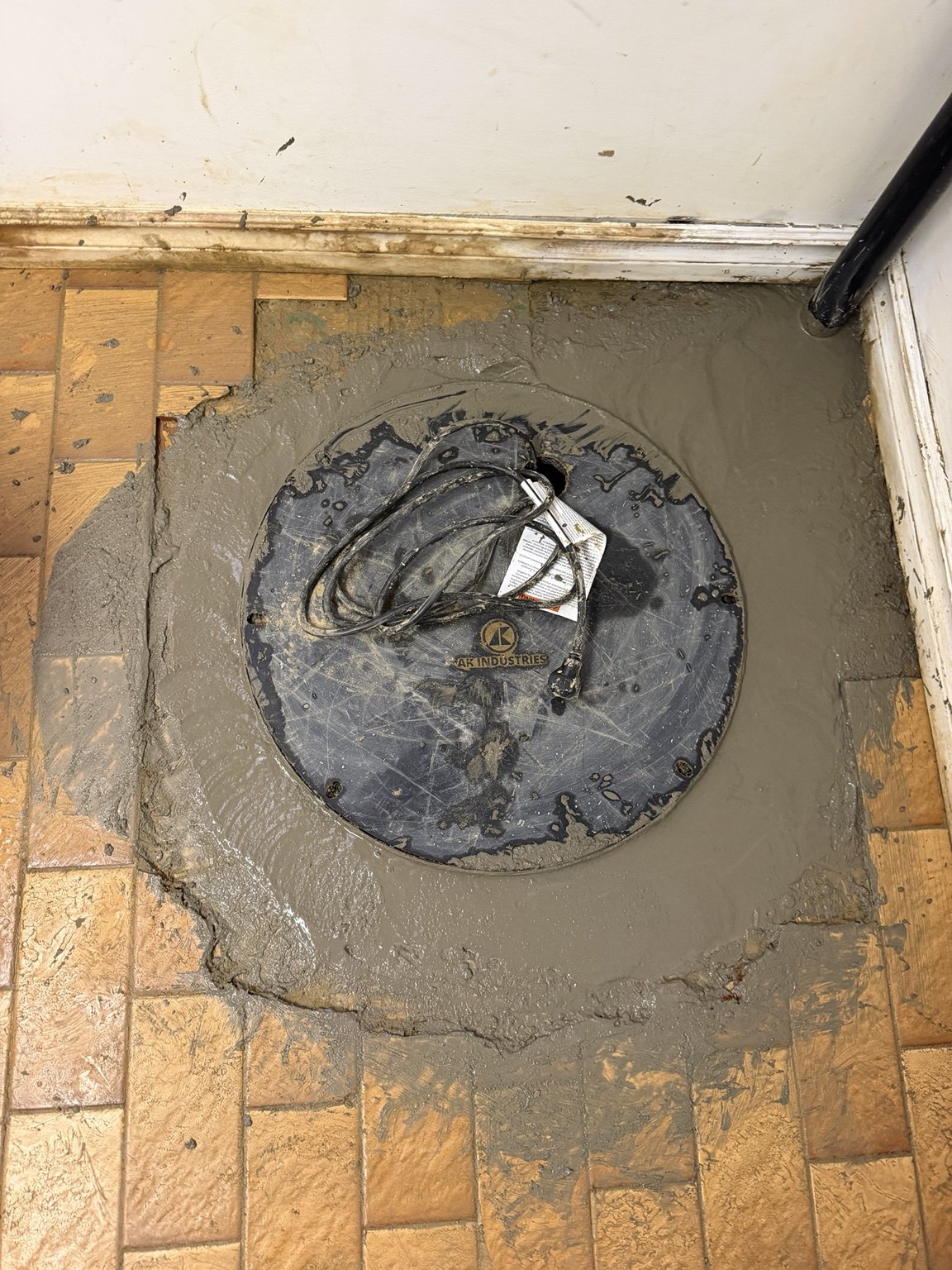

Concrete restoration around the covered basin

Project sequence 01

Foundation & walkway.

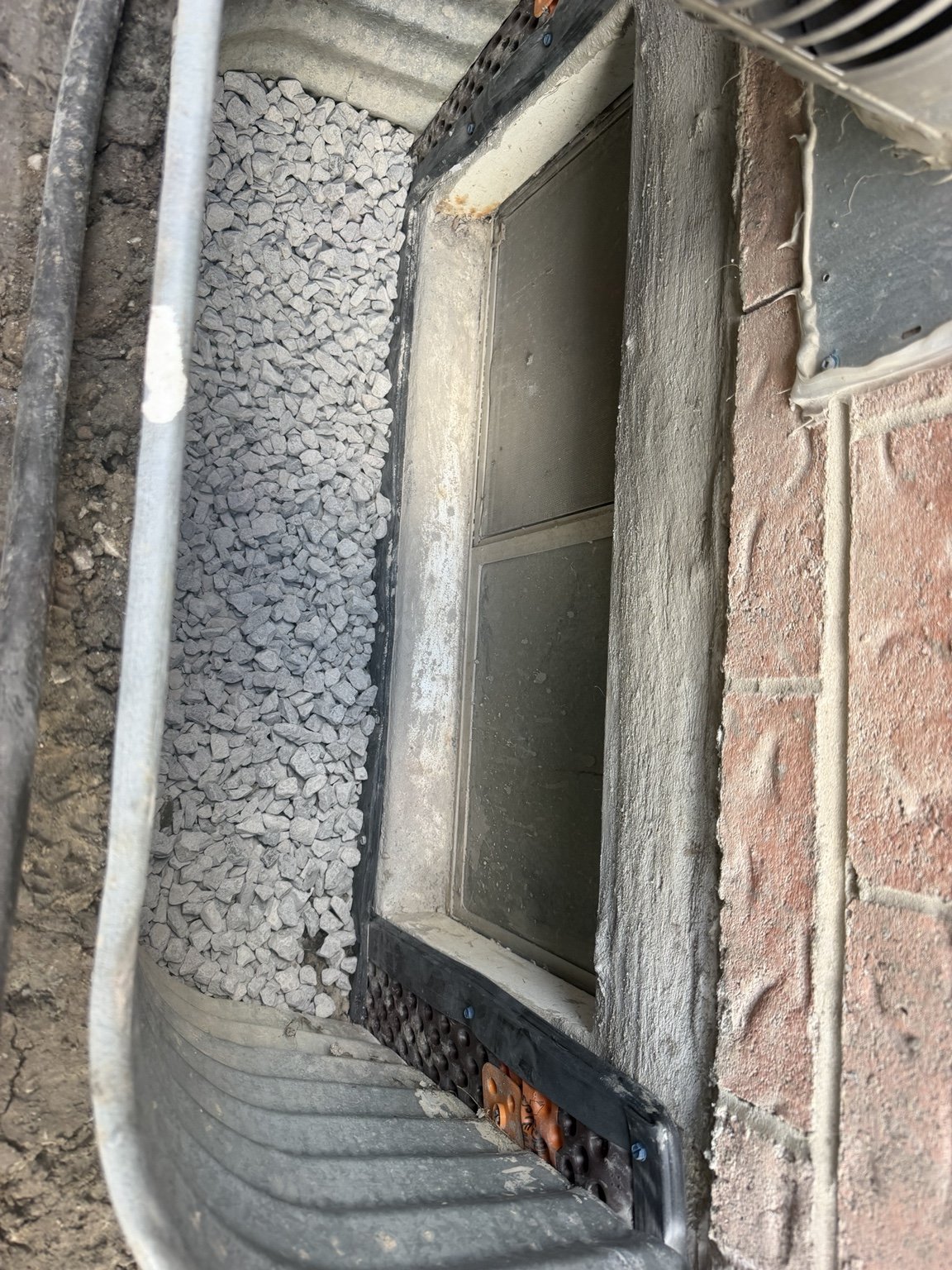

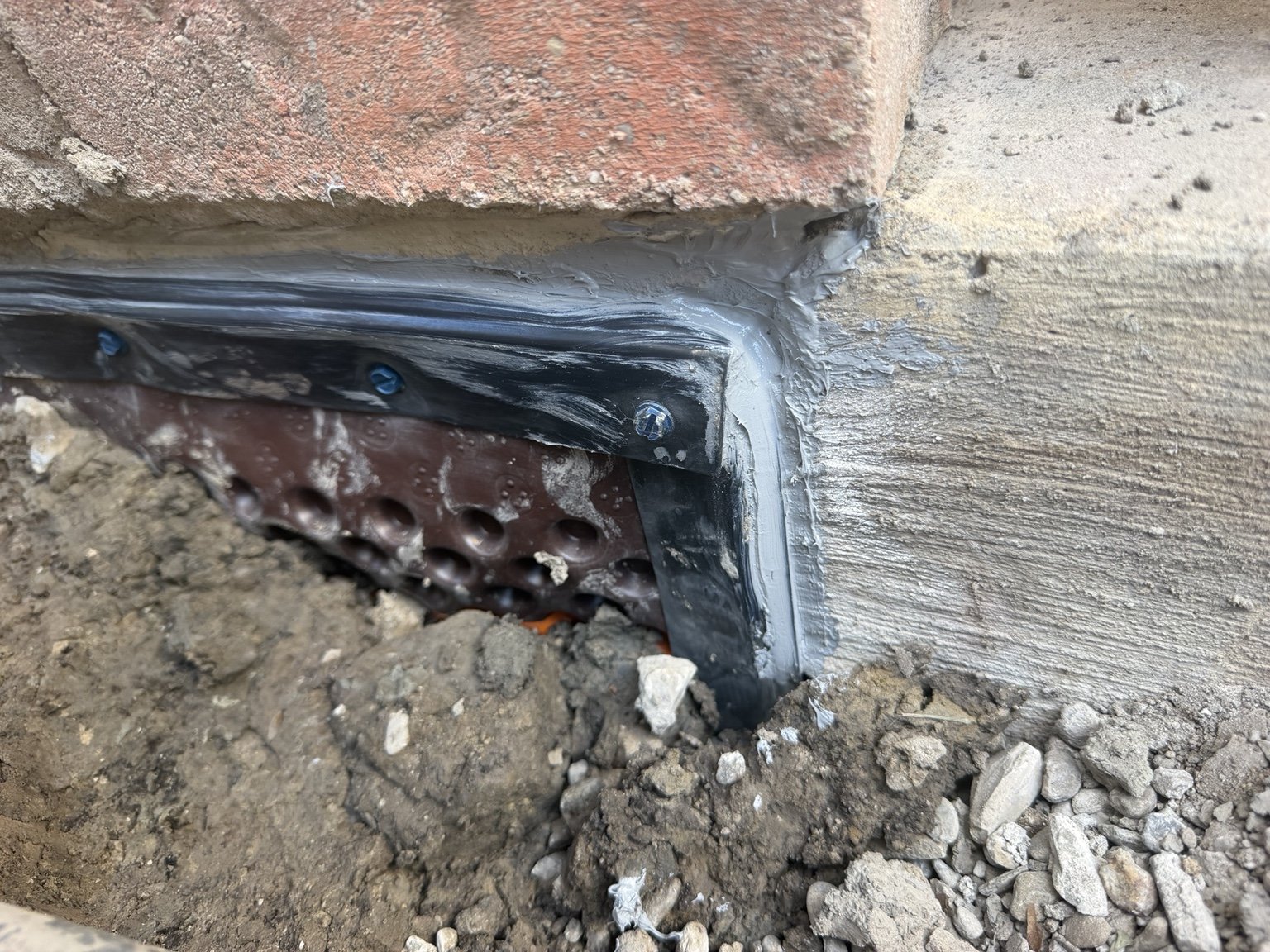

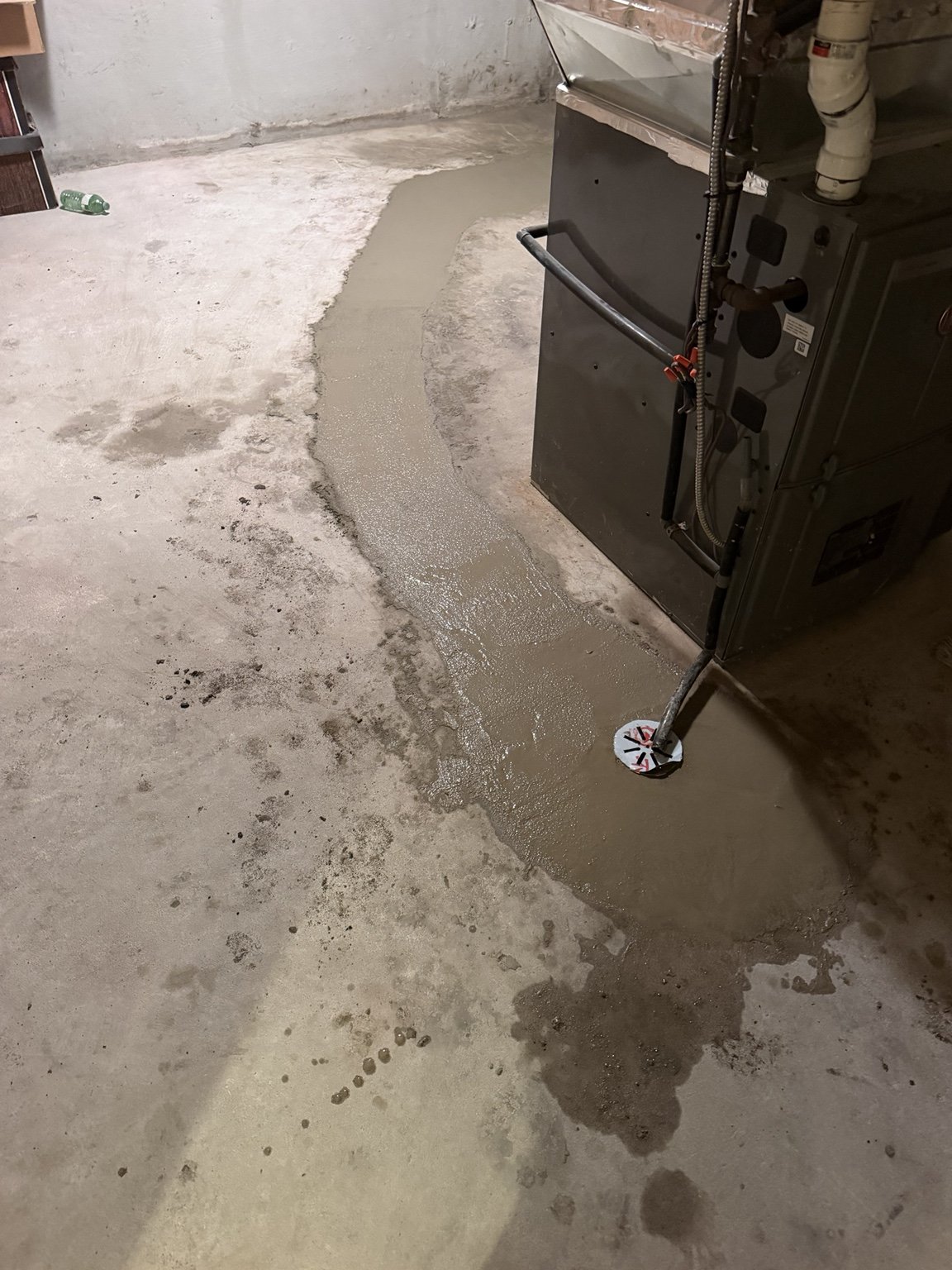

The photographs show membrane detail, a gravel-filled window well, a concrete floor patch and a restored paver walkway.

Project sequence 02

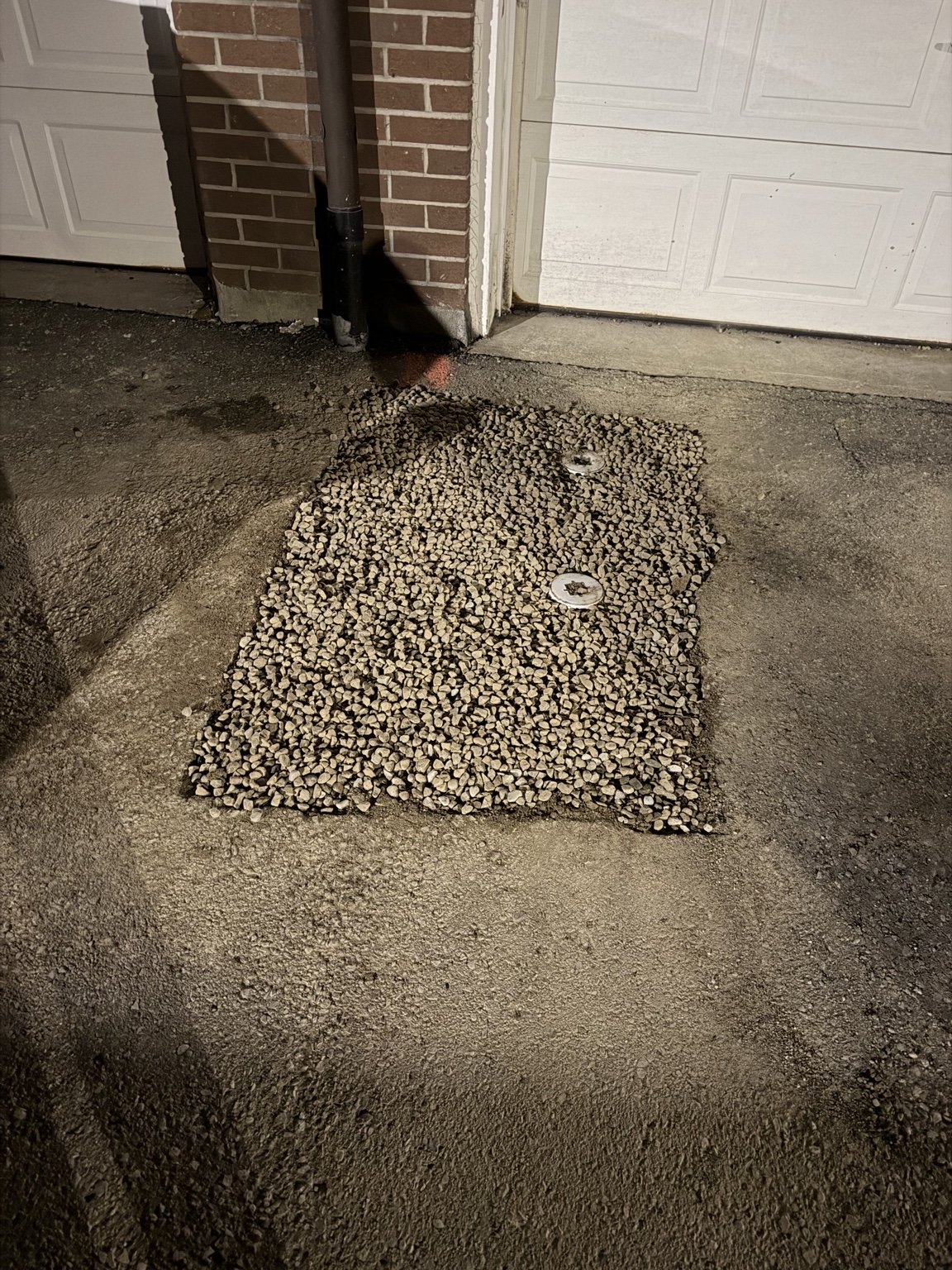

Underground sewer work.

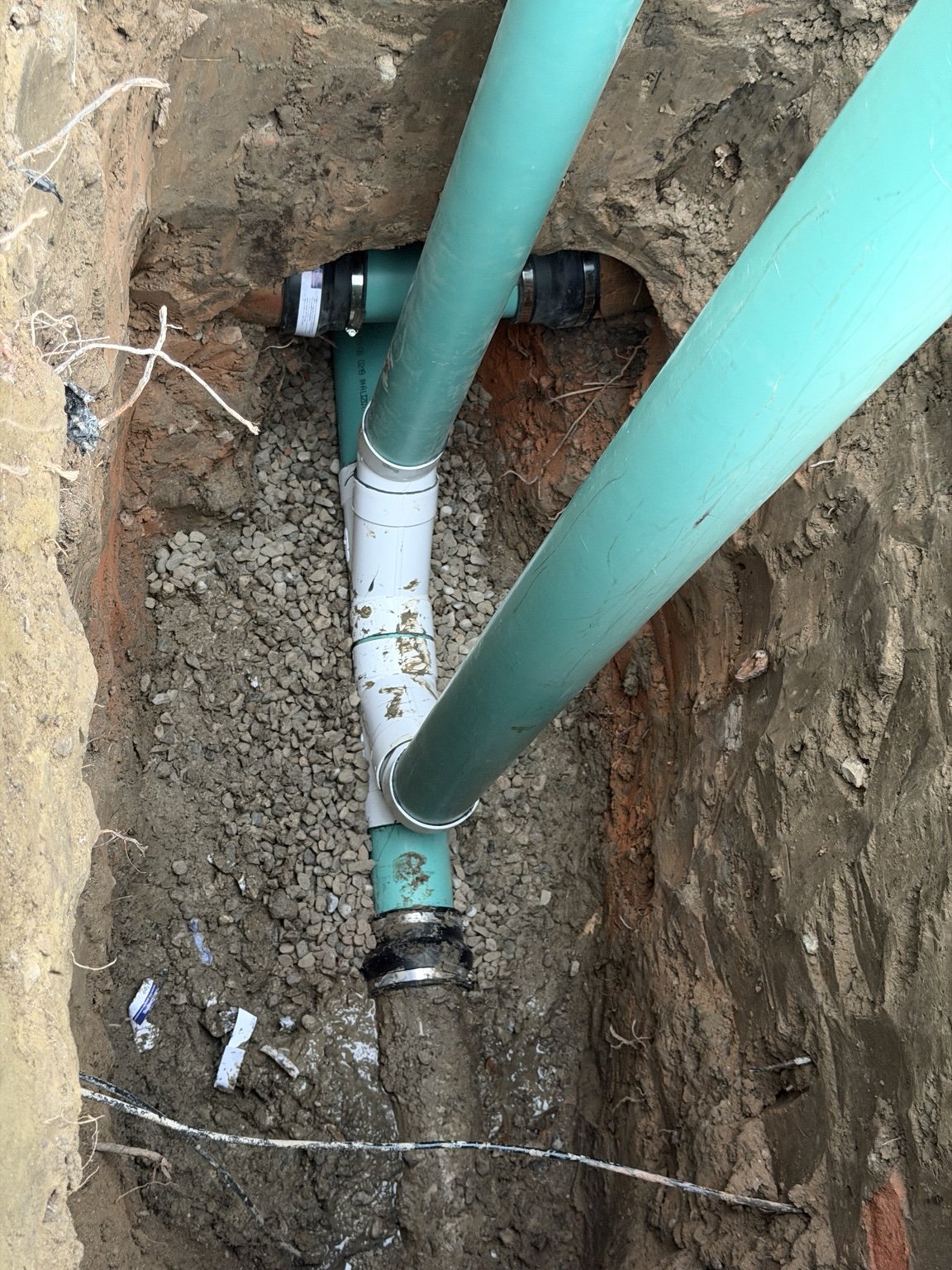

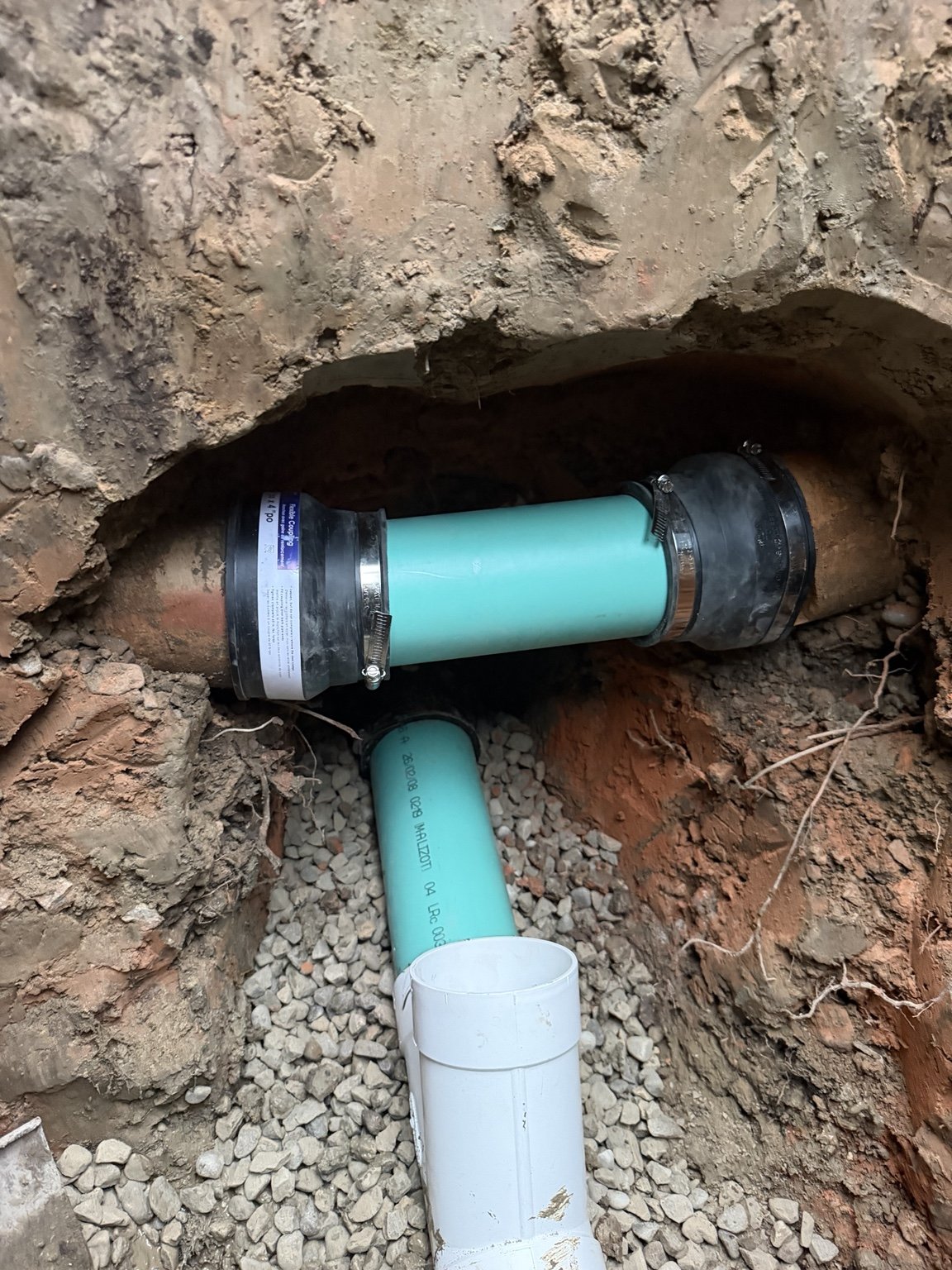

Follow the exposed pipe connections and access risers through to gravel backfill. The final photo shows the gravel stage; it does not show completed asphalt restoration.

Project sequence 03

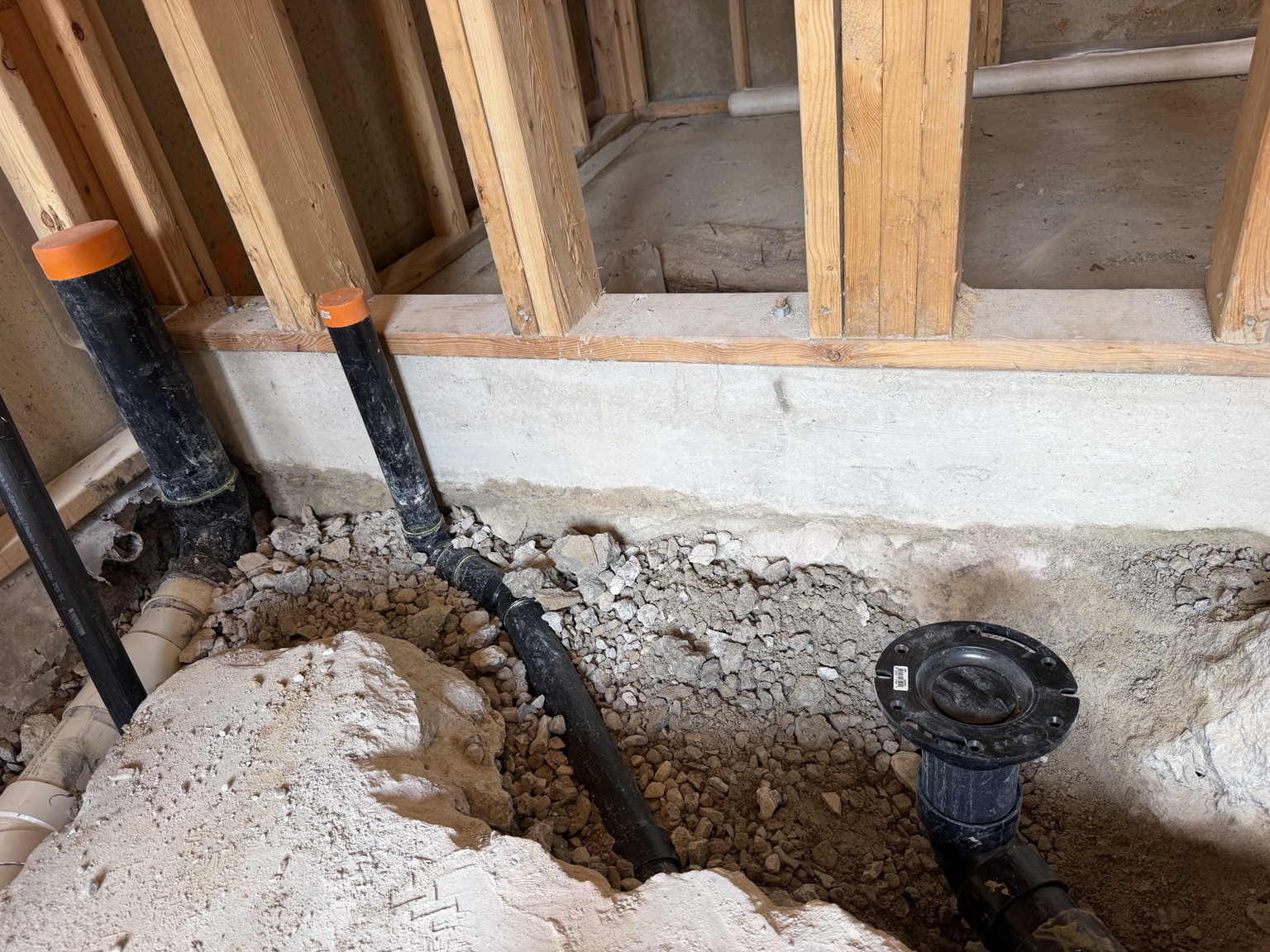

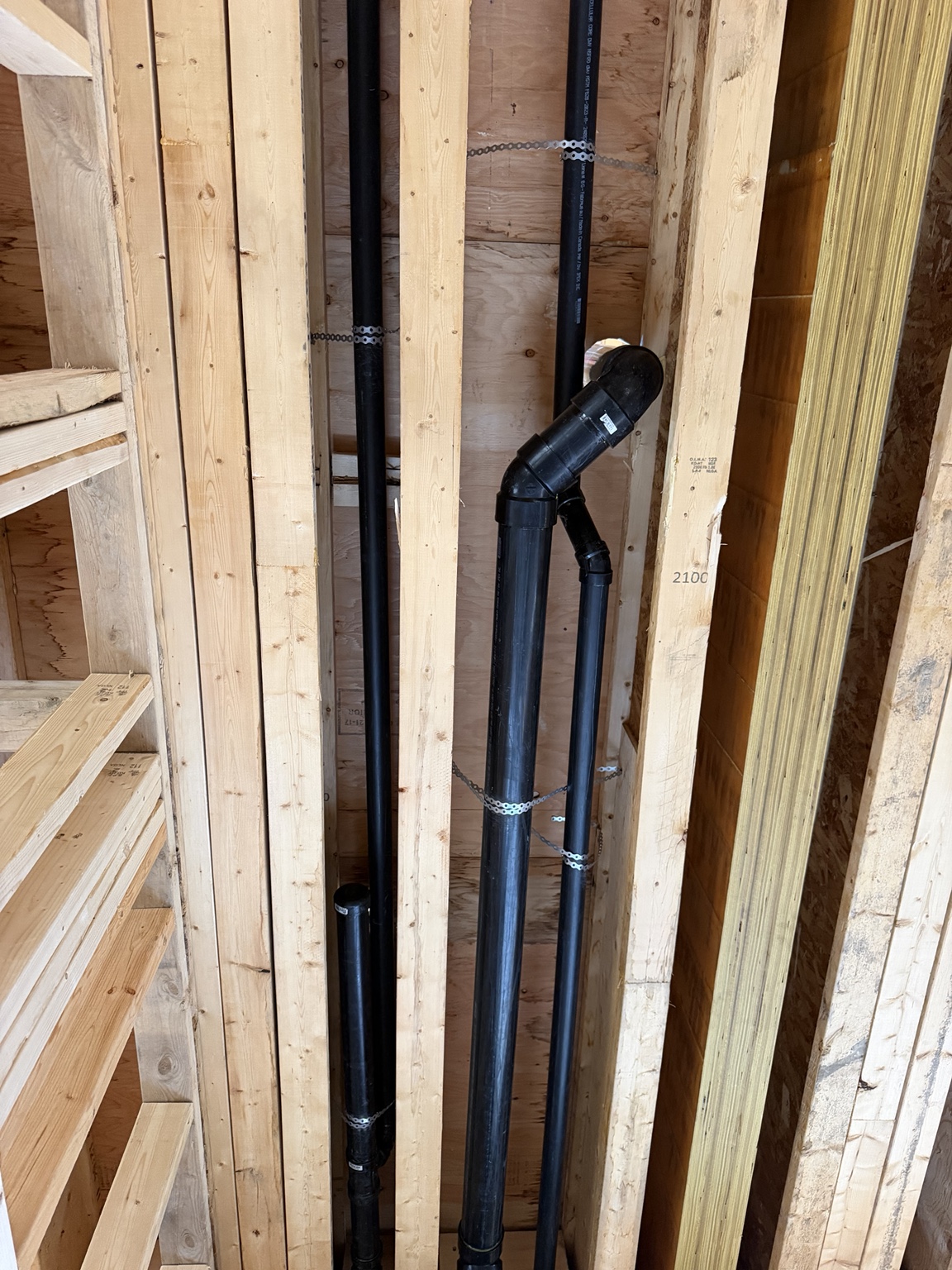

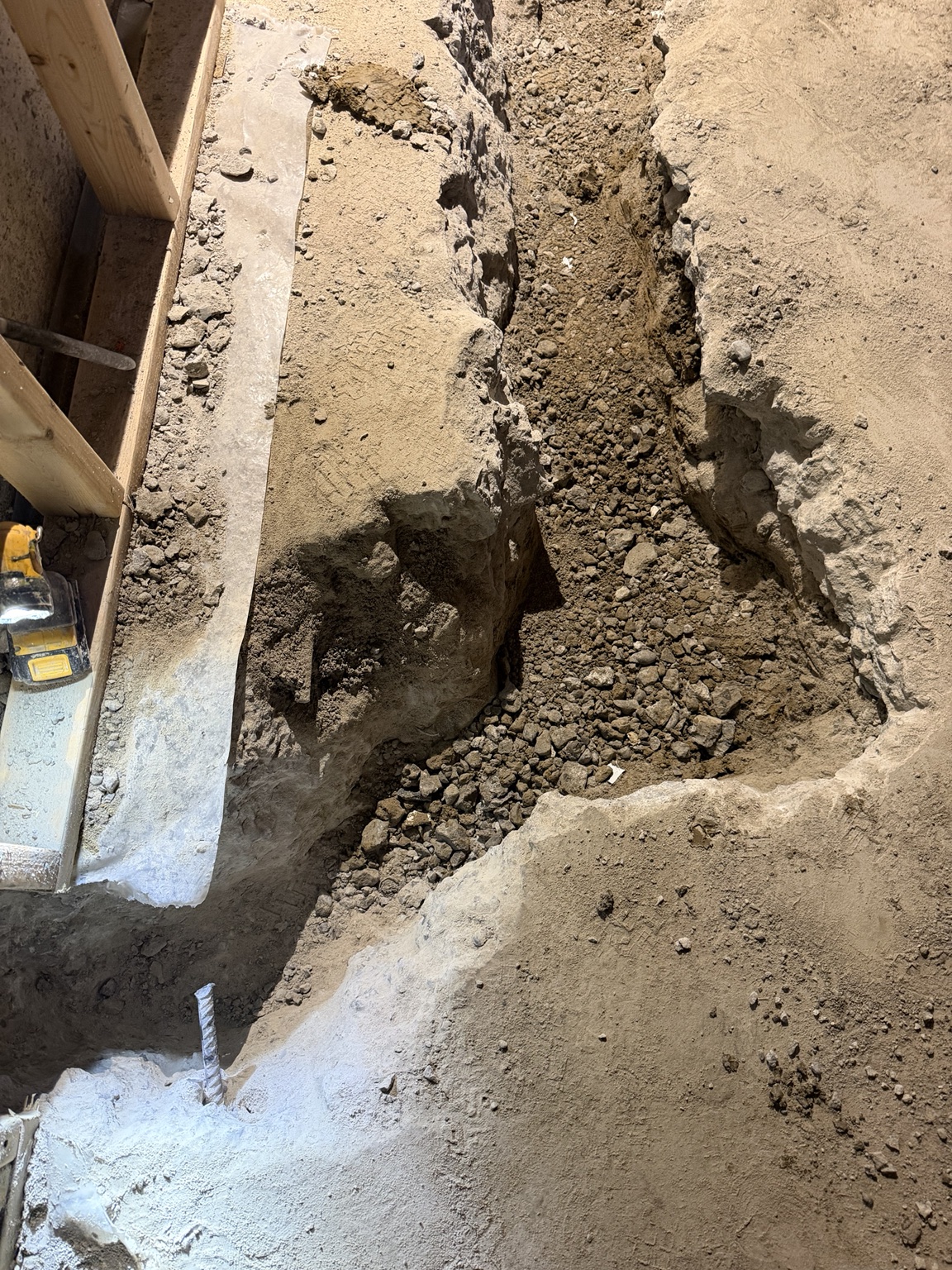

Underground drain tie-ins & rough-in.

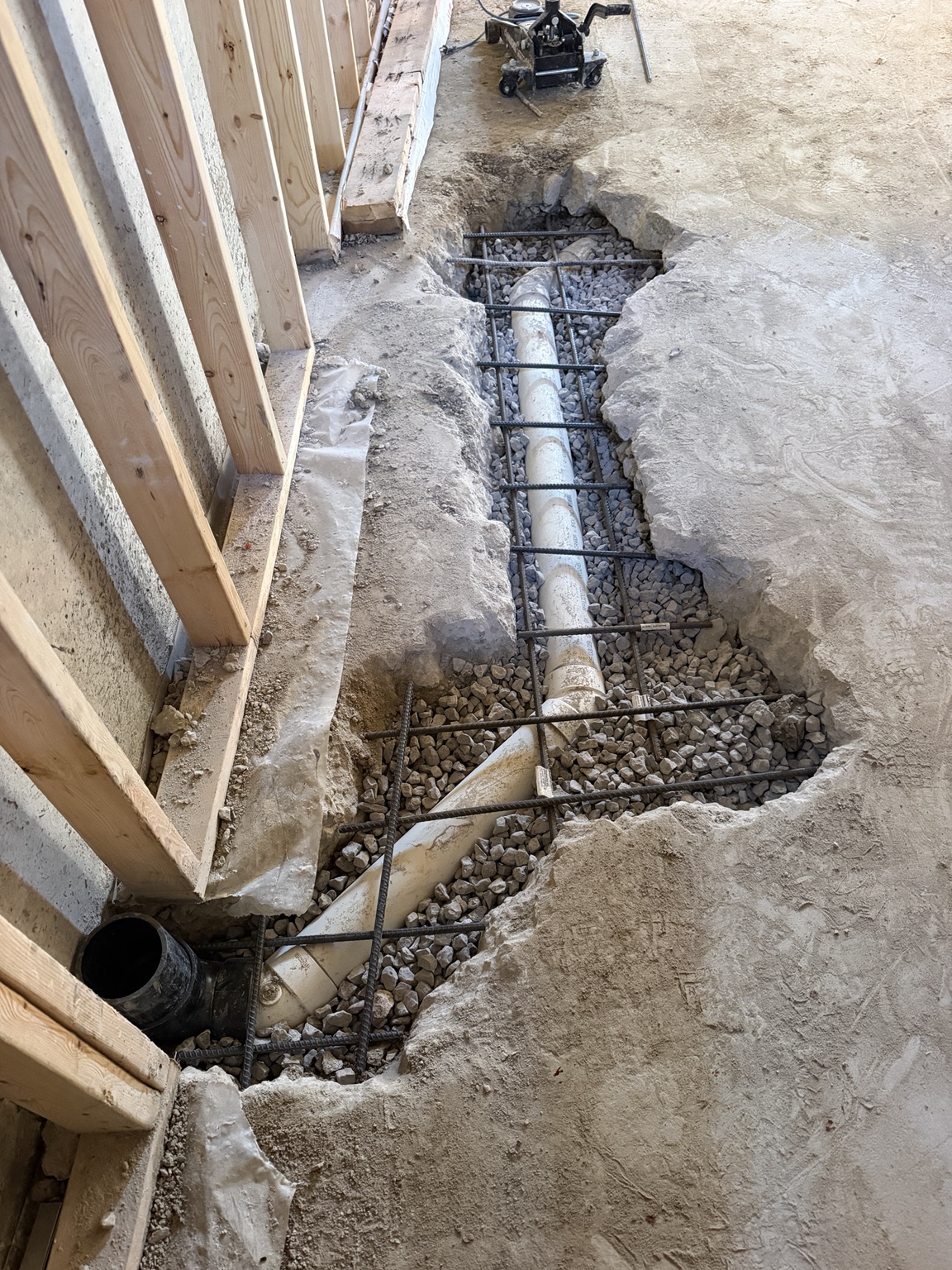

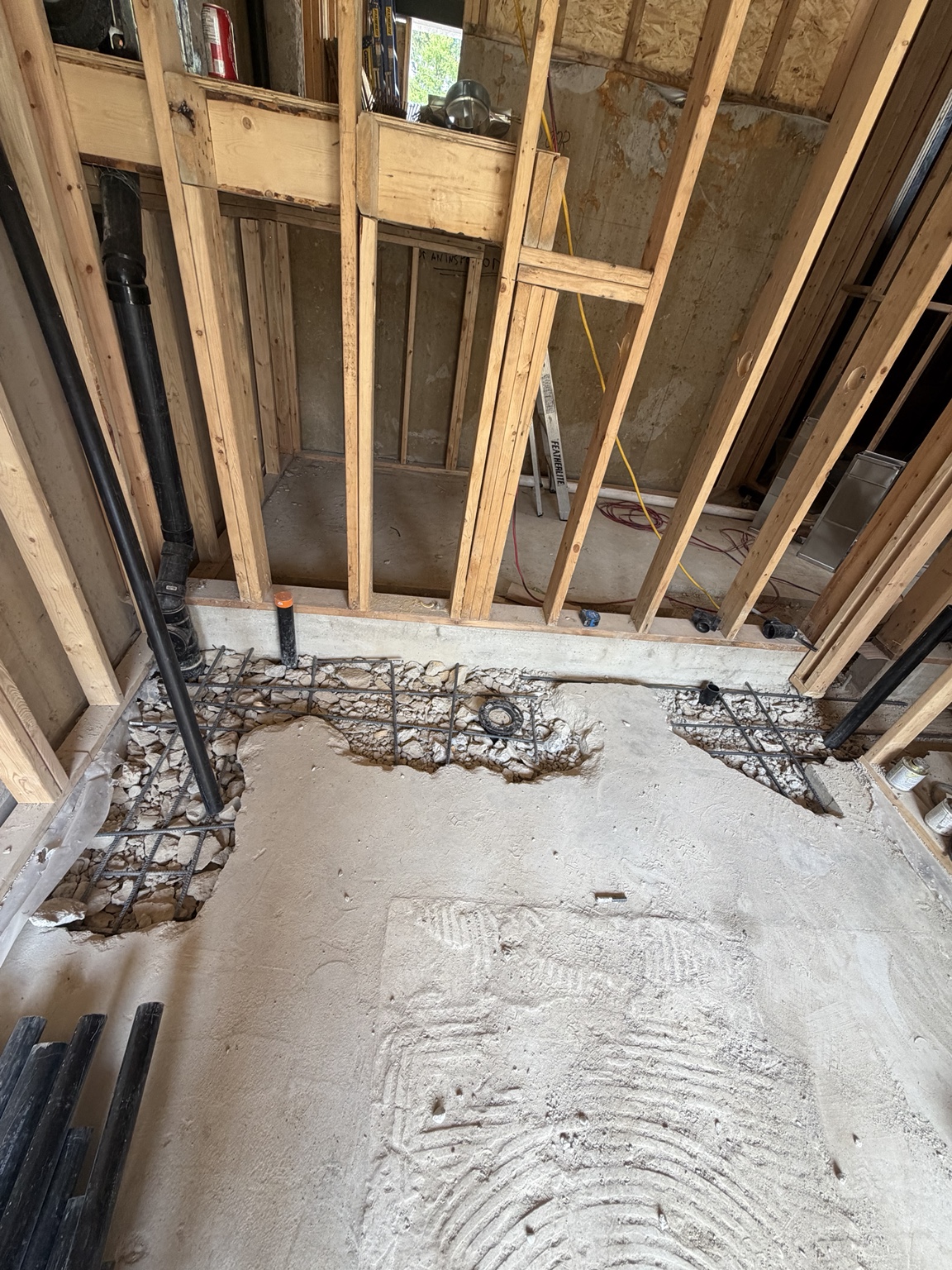

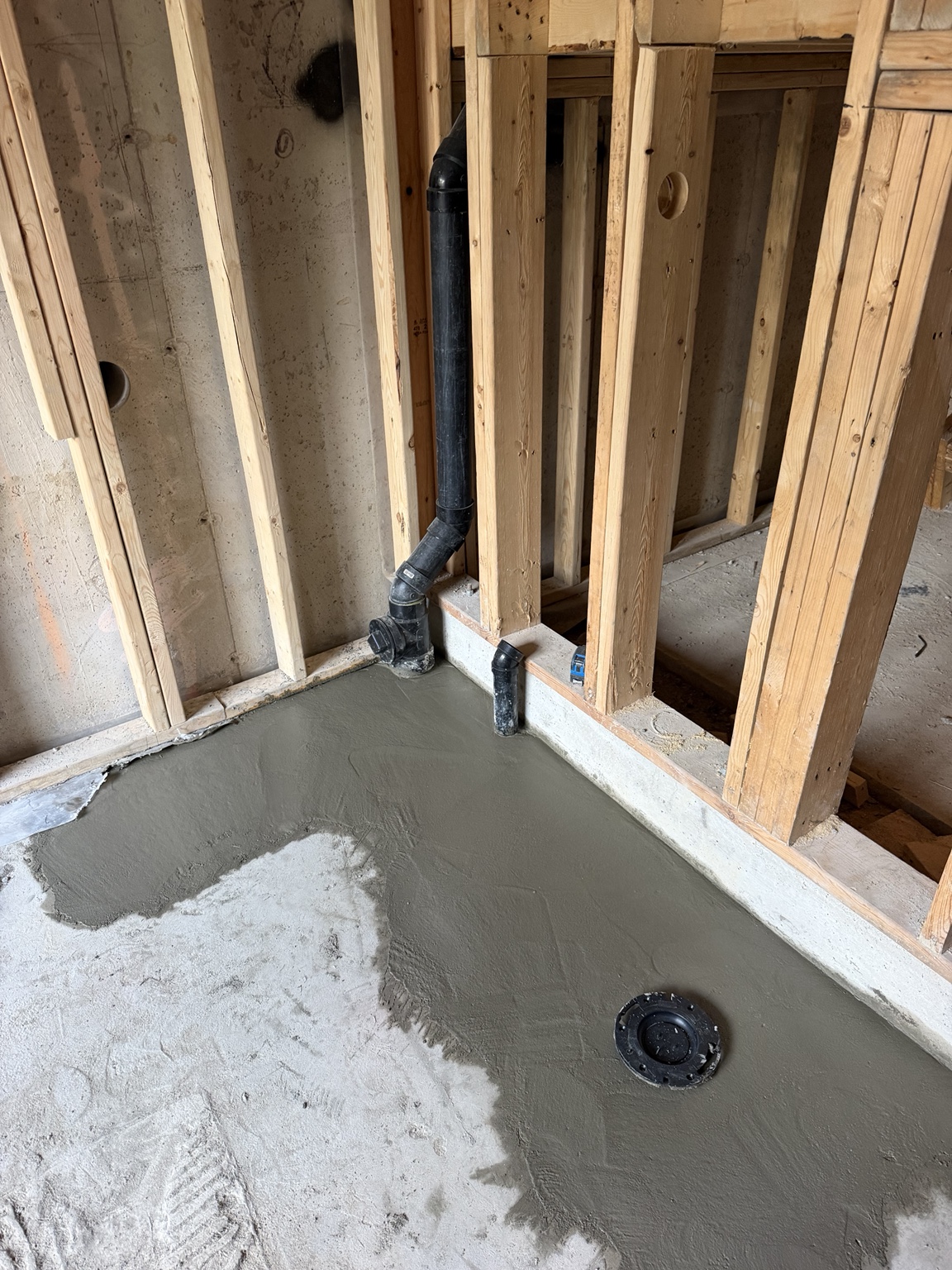

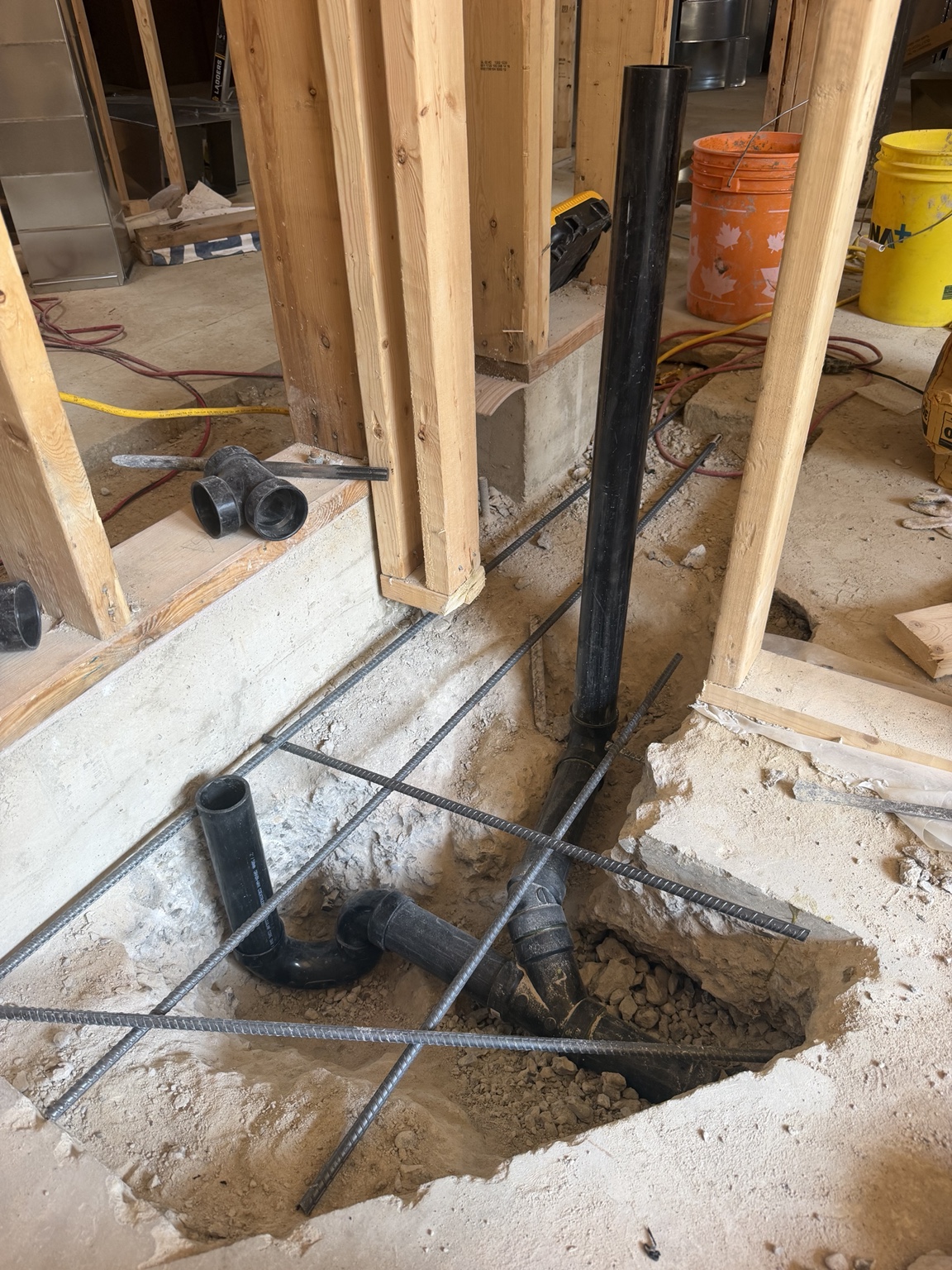

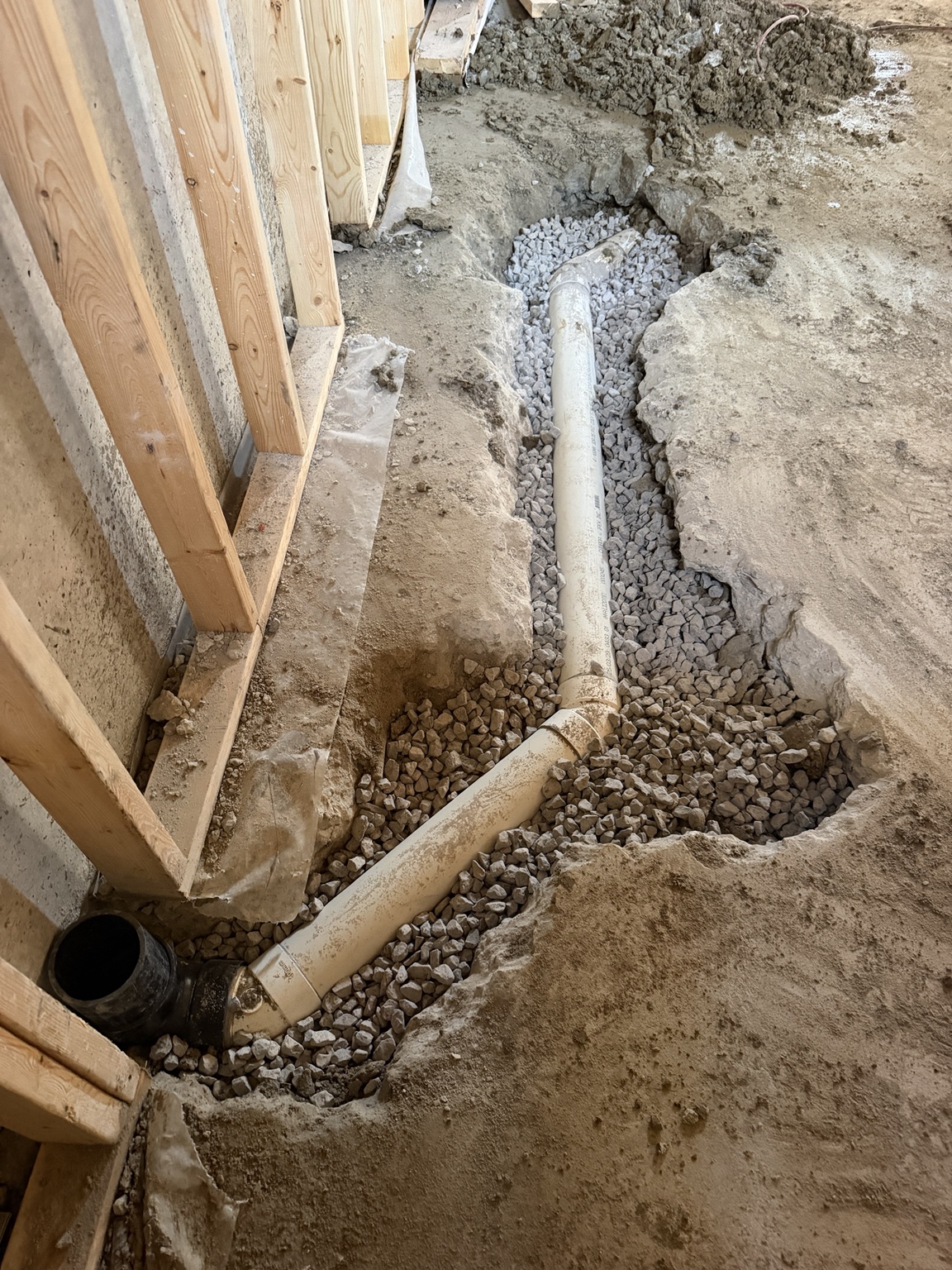

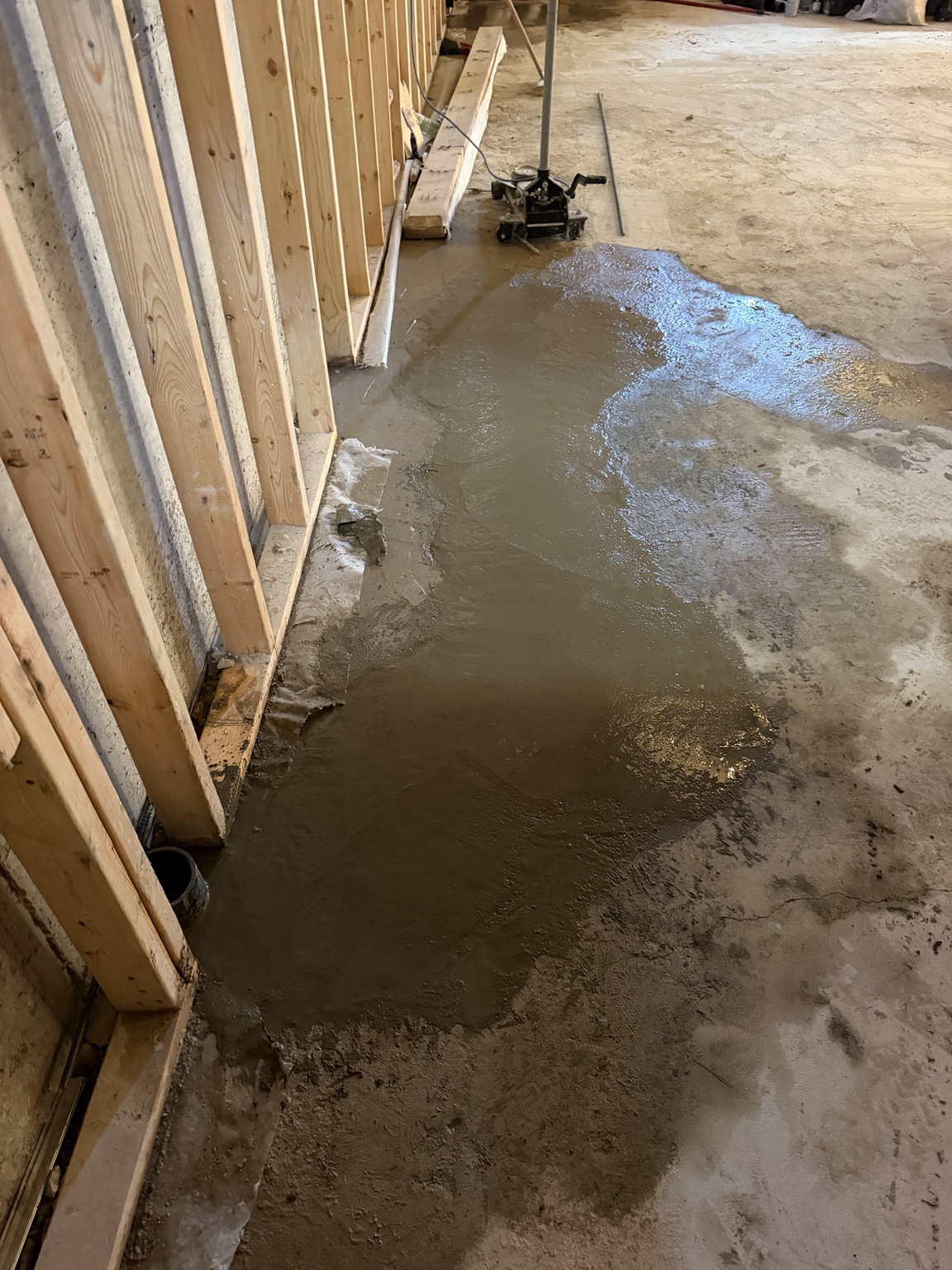

Tie-ins to an existing underground drain system in a house basement, preparing connections for three future plumbing stacks, a toilet, shower, washbasin and washing machine. The photographs show the new connections, gravel backfill, reinforcement and concrete floor restoration.
